Newterra Technology has been selected to develop a remediation plan for soil and groundwater contaminated with petroleum hydrocarbons and BTEX
Two diesel and one gasoline tanks were removed from the Lowe Farm site in Limestone County, Alabama, raising concerns about petroleum hydrocarbon and BTEX contamination. Newterra’s ozone injection remediation plan successfully reduced BTEX levels.
One gasoline and two diesel USTs were removed from the Lowe Farm site in July 1995, which is located in Limestone County, Alabama. The Alabama Department of Environmental Management (ADEM) required that investigative and corrective actions be implemented at the site. PPM Consultants Inc.’s (PPM) services were requested to construct a corrective action plan for the site by the property owner. In general, the native lithology is such that the upper 25 feet of soil consists of moist, reddish brown clay and silty or sandy clay. Chert fragments were present in most of the borings at various depths. Primary contaminants of concern are petroleum hydrocarbon and BTEX residual in both the soil and groundwater.
Market Served
Application
Location
Challenge
Solution
SOLUTION
Newterra was selected as the remediation technology for this site. After initial site condition research was conducted and a system sizing questionnaire was filled out, Newterra recommended the use of an OSU20-52 cabinet with 10 insitu oxidation points, each estimated at achieving a 10 foot radius of influence. The site layout shows the locations of each of the sparge wells.
RESULTS

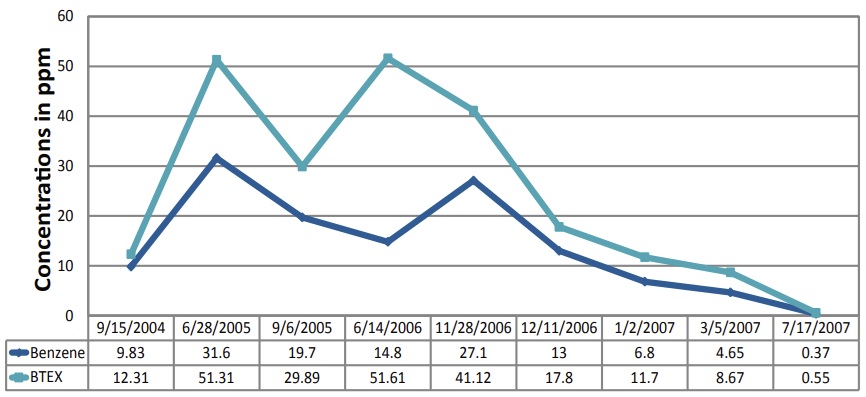

Sparging began in December of 2006. Results from monitoring indicated that BTEX levels dramatically decreased from the time that the system was installed. Results from monitoring well 8 are graphed showing the fluctuating background concentrations pre ozone and the decreasing trends from throughout the injection period. The site closed in 2008.
Project Snapshot

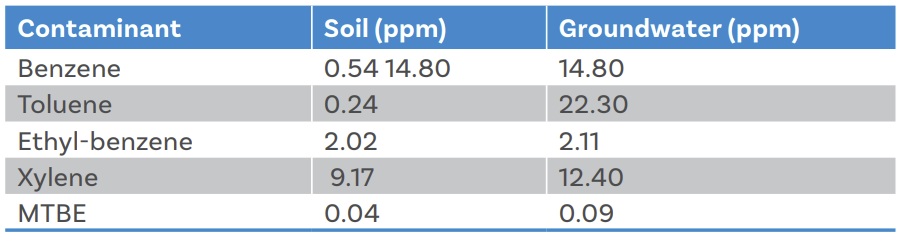

Existing Conditions: Primary contaminants of concern are petroleum hydrocarbon and BTEX residual in both the soil and groundwater.
The Newterra Solution: Newterra was contracted to build a system capable of injecting concentrated ozone gas focussed on treating BTEX and Benzene in tight clay soils. Newterra recommended the use of an 10 pound per day ozone cabinet equiped with Intelo-zone. The system utilized 10 in-situ oxidation points, each estimated at achieving a 10 foot radius of influence.
The site was closed in a year and a half after mobiliziation
