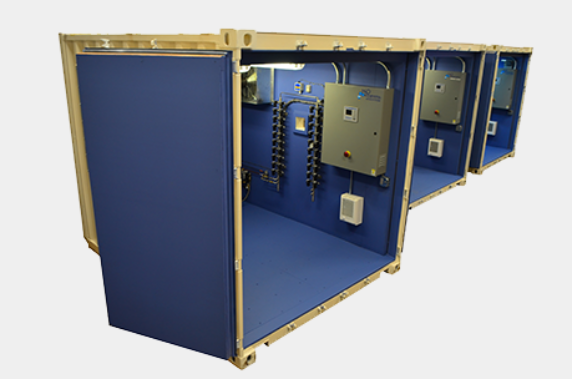

Container Ozone Sparge Unit

Our ozone sparge technology delivers the highest concentration of ozone gas directly to the contaminated subsurface. Featuring Intelo-zone® control technology, ozone is released in controlled time duration sequences via in-situ oxidation points. This feature can be programmed and recorded by the Logic Controller.

Product Overview

Effective for short-term “hot spot” remediation or full scale site clean ups, our ozone sparge units are completely self-contained and are available in trailer, cabinet enclosures and containers. While we have designed our standard units to handle most field conditions, we also offer custom systems to meet extraordinary site demands. Our systems are successfully oxidizing petroleum hydrocarbons and chlorinated solvents such as TPHg, TPHd, BTEX, MTBE, and TBA in both groundwater and soil applications.

Newterra’s control panels are UL 508 certified. We strive to manufacture the most reliable, robust equipment in the remediation industry.

Models Available

COSUXX-52, COSUXX-104, COSUXX-208, COSUXX-520 and COSUXX-840

Manufacturer

Newterra

Description

XX in model number denotes the amount of sparge valves. Custom units available upon request.

Details

Featuring Intelo-zone® Control Technology, Newterra’s ozone sparge systems deliver the highest concentration of ozone gas directly to the contaminated subsurface. Ozone is released in controlled time duration sequences via in-situ oxidation points. This feature can be programmed and recorded by the logic controller.

Standard Features

  • Intelo-zone® Control Technology
  • FREE Newterra Telemetry Package for remote monitoring and controls
  • Full one-year warranty includes materials and workmanship
  • 10, 20, 30 or 40 port manifolds available (XX in model number denotes the amount of sparge valves.)
  • Programmable Logic Controller (PLC) with Human Machine Interface (HMI)
  • User selection for ozone, ozone/air, oxygen, oxygen/air or air per sparge port
  • Delivery flow and pressure displayed and logged via PLC, viewable from HMI
  • Automated maintenance notifications

Intelo-zone® Control Technology

  • Independent time duration control for each sparge port (programmable from 1 to 120 minutes)
  • Independent time accumulators for tracking ozone vs. oxygen vs. air / breakthrough time per valve
  • User configurable valve sparge sequence ordering
  • Variable ozone output can be individually configured for each valve
  • Lag time between sparge cycles (programmable from 1 to 480 minutes)
  • Suspend mode for planned nonoperational periods
  • Online monitoring options available PH, ORP, DO, DO3, etc.

Ozone Generator Output and Supply

  • 2.74 to 43.8 lbs/day, up to 6% concentration by weight
  • PSA oxygen concentrator delivers 90% purity
  • Ozone delivery pump features all ozone-resistant components
  • Maximum ozone sparge pressure of 50 PSI
  • Maximum air/breakthrough sparge pressure of 90 PSI
  • Automatic regression from ozone to air/breakthrough mode upon high pressure detection

Distinctive built-in safety features:

  • Ambient ozone alarm/shutdown sensor
  • High pressure alarm/shutdown
  • Built-in thermal protection, high/low temperature alarms
  • Sensor failure alarm
  • Remote shutdown interface signal
  • Remote ozone sensor connections

Service contracts and start-up assistance available

Custom systems available for unique project needs
