Large Scale Ozone System

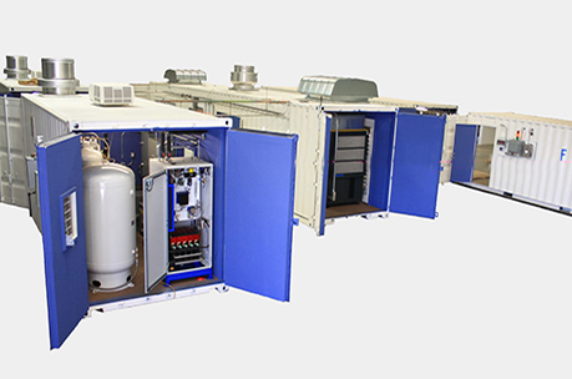

Large ozone systems, more than 50 pounds per day, are suitable for use in applications such as small community drinking water systems, publicly owned treatment works and large industrial waste or process water treatment. Ozone can not only destroy organic compounds, but can also break down harmful viruses in wastewater and destroy pharmaceuticals such as estrogen in drinking water treatment. These systems are typically installed inside a separate building at a facility. They can also be containerized for ease of transportation.

Large Ozone Sparge system




50+ pounds/day ozone output. Contained or pad mounted.


Featuring Intelo-zone® Control Technology, Newterra’s ozone sparge systems deliver the highest concentration of ozone gas directly to the contaminated subsurface. Ozone is released in controlled time duration sequences via in-situ oxidation points. This feature can be programmed and recorded by the logic controller.

Standard Features

  • Intelo-zone® Control Technology
  • FREE Newterra Telemetry Package for remote monitoring and controls
  • Full one-year warranty includes materials and workmanship
  • Sparge manifolds designed per application
  • Programmable Logic Controller (PLC) with Human Machine Interface (HMI)
  • User selection for ozone, ozone/air, oxygen, oxygen/air or air per sparge port
  • Delivery flow and pressure displayed and logged via PLC, viewable from HMI
  • Automated maintenance notifications

Intelo-zone® Control Technology

  • Independent time duration control for each sparge port (programmable from 1 to 120 minutes)
  • Independent time accumulators for tracking ozone vs. oxygen vs. air / breakthrough time per valve
  • User configurable valve sparge sequence ordering
  • Variable ozone output can be individually configured for each valve
  • Lag time between sparge cycles (programmable from 1 to 480 minutes)
  • Suspend mode for planned nonoperational periods
  • Online monitoring options available PH, ORP, DO, DO3, etc.

Ozone Generator Output and Supply

  • 50+ lbs/day ozone output
  • Ozone delivery pump features all ozone-resistant components
  • Automatic regression from ozone to air/breakthrough mode upon high pressure detection

Distinctive built-in safety features:

  • Ambient ozone alarm/shutdown sensor
  • High pressure alarm/shutdown
  • Built-in thermal protection, high/low temperature alarms
  • Sensor failure alarm
  • Remote shutdown interface signal
  • Remote ozone sensor connections

System designed and built to specifications of client

Service contracts and start-up assistance available
