EPRO Reverse Osmosis (RO) Water Treatment Systems

The complete line of EPRO Reverse Osmosis (RO) Water Treatment Systems accommodates a diverse range of residential, municipal and industrial applications with flow rates from 500- to 175,000 GPD. From tap water, brackish water, seawater and industrial process water, RO systems remove up to 99.8% of impurities, such as bacteria and dissolved solids, from water by passing water through a semipermeable membrane under pressure.  Clean, pure water – that’s what we deliver.

RO will remove most dissolved solids (ions) and other constituents that can can stain fixtures and laundry, give flower and vegetable plants the ability to uptake minerals from the water.   The result is water that is very low in minerals and alkalinity.

You deserve clean, pure water in your home. EPRO Residential Reverse Osmosis systems are designed to maximize water purification efficiency and produce high-quality clean water is supplied through existing taps (faucets).

EPRO industrial applications that rely on high -efficiency, high-purity water.

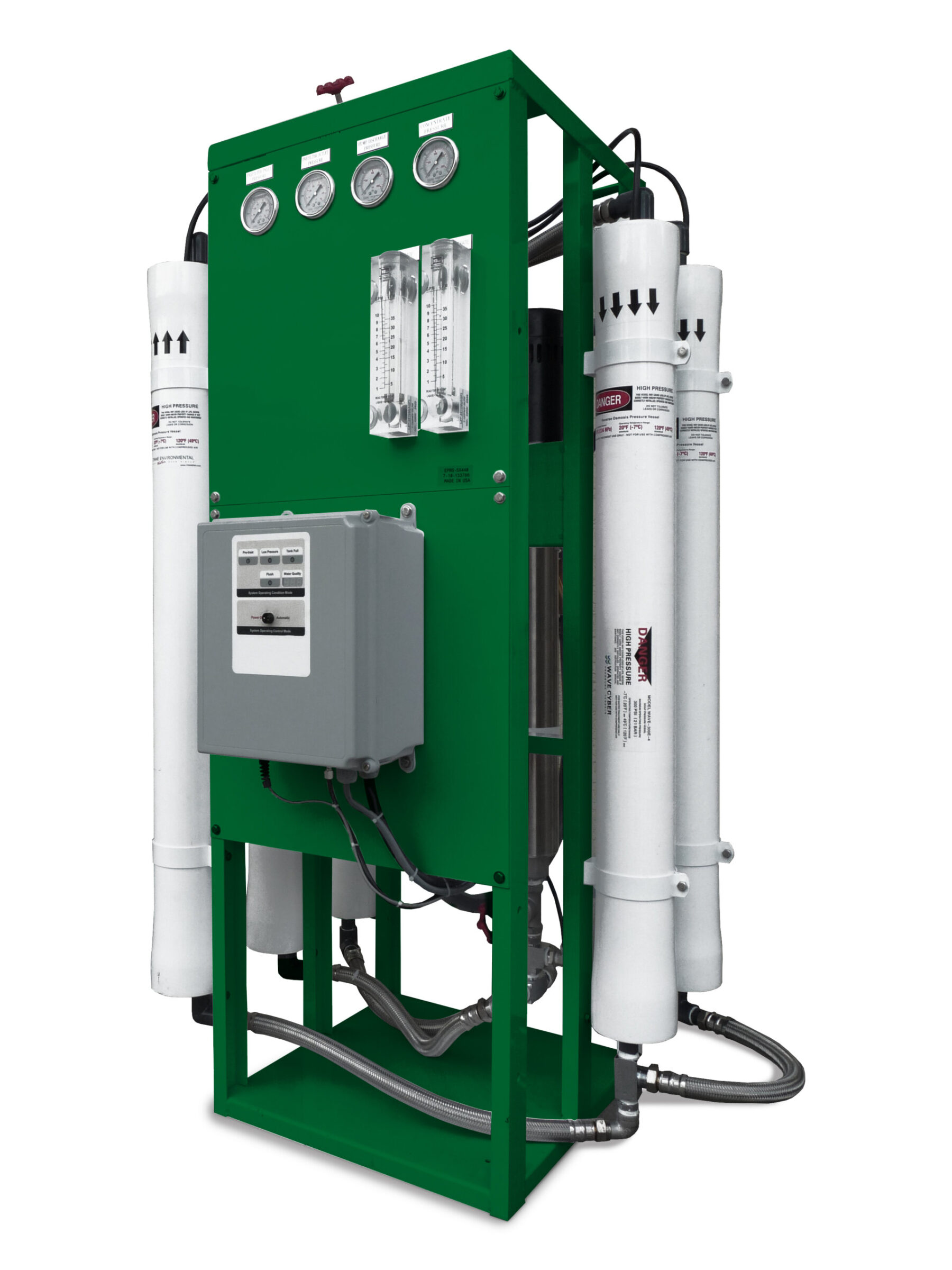

A product image with a white background of an EPRO reverse osmosis water filtration system consisting of a green metal frame with five vertically oriented water filters connected by metal hoses with an electrical panel with gauges

Product Overview

Even from a trusted municipal source, water quality can vary over time and season. Rainfall, organic loading, amount of sun, and reservoir water height can all influence the water that feeds our consumption. Add to this the effects of water purification—chlorine or chloramine, how loaded was the sand filtration and carbon systems, how long was the water in the pipe, how warm or cold was the ground the pipe was in, what were the pipes made of—all these influences the water at your tap.

Maybe the water in these systems of your property smells a little, leaves stains on the sinks, has organic material or has a very high pH (the cause of “hard” water).  You need clean water supplied through existing taps (faucets).

Whatever your treatment needs, Newterra offers the reliable best solution to provide the purest water. These systems are engineered from the ground up to provide maximum treatment efficiency in a compact, skidded package for your application.

  • Residential
  • Craft Breweries
  • Cannabis Growing
  • Nurseries and Greenhouses
  • Commercial Laundry Facilities
  • Buildings, Condominiums and Apartment Complexes
  • Misting and Humidification
  • Ice Making
  • Commercial Printing
  • Chemical Processing
  • Electronics Fabrication
  • Food and Beverage Production & Bottling
  • Pharmaceutical Production
  • Laboratories
  • Paint and Assembly
  • Boiler Feed
  • Cooling Tower MakeUp


  • All of our systems are assembled and Factory-Tested in the USA
  • LMF Reverse Osmosis Systems for Higher Flow Rate Industrial Applications:
  • Flow Meters: Digital Concentrate & Permeate and Analog Recycle
  • Grundfos CR-Series 316 Stainless Steel (SS) Pump with a Totally Enclosed, Fan-Cooled (TEFC) Motor
  • Membranes: 8×40 in., Thin-film Composite (TFC) Brackish Water
  • Fiber-Reinforced Polymer (FRP) Side-ported, 300 psi Pressure Vessels
  • Low-Pressure Switch
  • Voltage: 460V/60Hz/3 Phase
  • Prefilter Housing: 316SS w/5-micron cartridges
  • Pressure Gauges: 2.5 in Dia., 316SS, Pre- and Post-Filter, First Array Feed, Concentrate, Permeate and Interstage
  • Variable Frequency Drive (VFD)
  • Automatic Inlet Feedwater Valve
  • 316SS High-Pressure Valves (Concentrate, Recycle)
  • Automation Direct Programmable Logic Controller (PLC)-Based Control System
  • Integrated Webserver to Mirror Touchscreen Controls
  • 2 in Inlet Size
  • 2 in Permeate Size
  • 20 psi Inlet Pressure Required
  • Automatic Fast Flush
  • Total Dissolve Solids (TDS) Monitor
  • Concentrate Recycle Loop
  • Sample Valves
  • Cleaning Ports

Additional Features

E, RO, SW and Commercial Reverse Osmosis Systems for Residential and Light-Industrial Applications

  • High-Pressure Piping: 316 SS
  • 380V/50Hz/208-240V 60Hz 3P
  • Anti-Scalant Dosing System
  • De-Chlorination Dosing System
  • Acid Dosing System
  • Potential of Hydrogen (pH) Elevation Dosing System
  • pH Monitor/Controller
  • Oxidation-Reduction Potential (ORP) Monitor/Controller
  • “Cold Water” Membranes
  • Recycle Flow Transmitter Digital
  • Nanofiltration Membranes are Available
  • High-Pressure Switch
  • Fully Crated for Shipping

Technical Specifications

The Newterra DELTA series units are available for custom or larger RO systems.


EPRO E1500300025-40%Econo unit. Pick this unit for smaller flow applications if you don’t need to control other equipment such as pre-filtration or post pressurization. Electrical is 1 phase only.EPRO E Series Brochure
EPRO RO60010,00025-45%The EPRO RO series has more options than the E-Series and can control other equipment in addition to the RO. Many different electrical service options available including 3 phase.EPRO RO Brochure
EPRO SW1,0006,000Up to 45%Pick this unit if your business will use seawater as the sourceEPRO SW Brochure
EPRO Commercial11,50024,50040-70%Pre-Engineered units for Medium Flow ApplicationsEPRO Commercial RO
EPRO LMF28,500170,00070% with recyclePre-engineered, quick delivery systems for Higher Flow ApplicationsLMF Brochure

Related Content

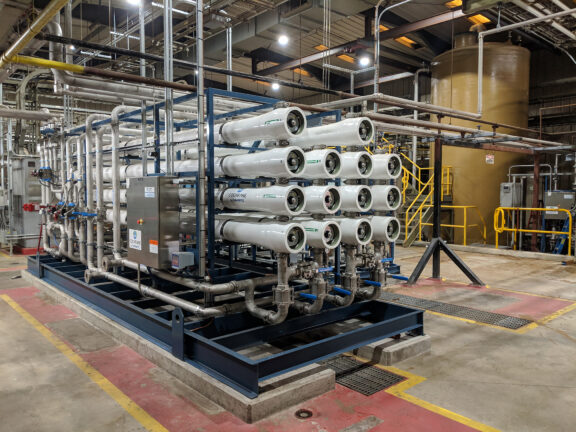

Newterra custom reverse osmosis system consists of a fourteen white pipes stacked in four columns consisting of four pipes, three pipes, four pipes, and three pipes when read left to right with a blue enameled steel frame with steel pipes leading to a control box within a water treatment warehouse.

Custom Reverse Osmosis Systems

Custom Reverse Osmosis (RO) Systems provide effective, continuous dissolved solids recovery of up to +80% in a modular and scalable design. These tailored systems can accommodate a wide range of feed water qualities with a single or double pass and differing stage configurations and arrays. You’ll receive a consistent permeate quality for your specific application.

Read More about Custom Reverse Osmosis Systems
