FilterX
Condensate Polisher

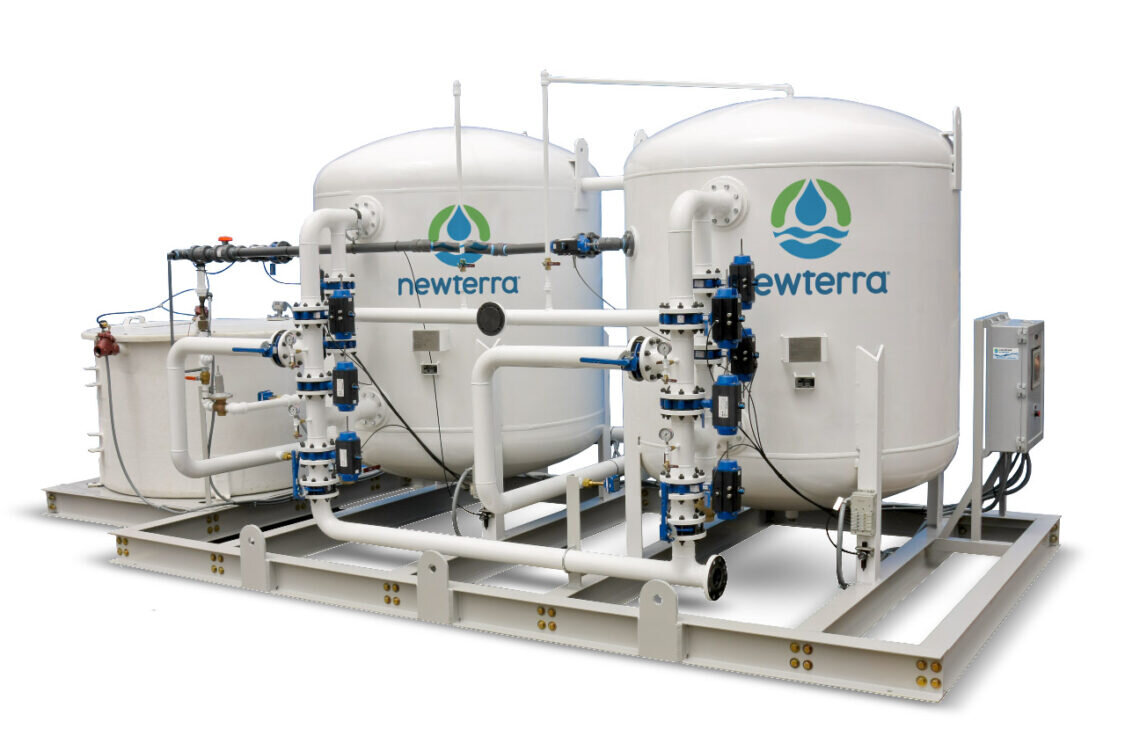

FilterX Condensate Polisher is a co-current style ion exchange softener typically used for high-temperature applications.  Hardness and iron/ copper oxides in boiler condensate can easily damage plumbing, valves and downstream equipment and can cause scaling and thermal efficiency loss which is harmful to boilers.  The FilterX Condensate Polisher removes hardness (scale-forming calcium and magnesium ions) and iron/copper oxides and replaces them with soluble sodium ions.

Product Overview

Features

  • Industrial-grade high-temperature ion exchange softener (Newterra CRV resin)
  • Removes dissolved hardness and suspended corrosion products from condensate up to 300°F.
  • Compact, high-flow design
  • Fully integrated system with the vessel, media, piping and instrumentation pre-wired and pre-tested
  • Rated for continuous or intermittent duty
  • Automatically regenerated based on manual, time or metered flow demand

Benefits

  • Provides effective removal of water hardness in boiler condensate
  • Provides effective removal of iron/ copper oxides in boiler condensate
  • Can be automatically regenerated based on manual, time or metered flow demand-initiated Inlet/outlet pressure gauges
  • Efficient internal designs provide a typical 10 PSI pressure drop across the tank when clean
  • Minimum energy and maintenance requirements
  • Stand-alone tanks or modular skid-mounted (pre-piped & pre-wired) options

Technical Specifications

ModelRating (gpm)InletTank OdTank SSResin Volume (ft3)Capacity (Kilograins)
FXCS-301953″2′-6′5′-0″12.3250
FXCS-362804″3′-0″5′-0″17.7365
FXCS-423806″3′-6″5′-0″24.1495
FXCS-485006″4′-0″5′-0″31.4645
FXCS-546306″4′-6″5′-0″39.8820
FXCS-607856″5′-0″5′-0″49.11000
