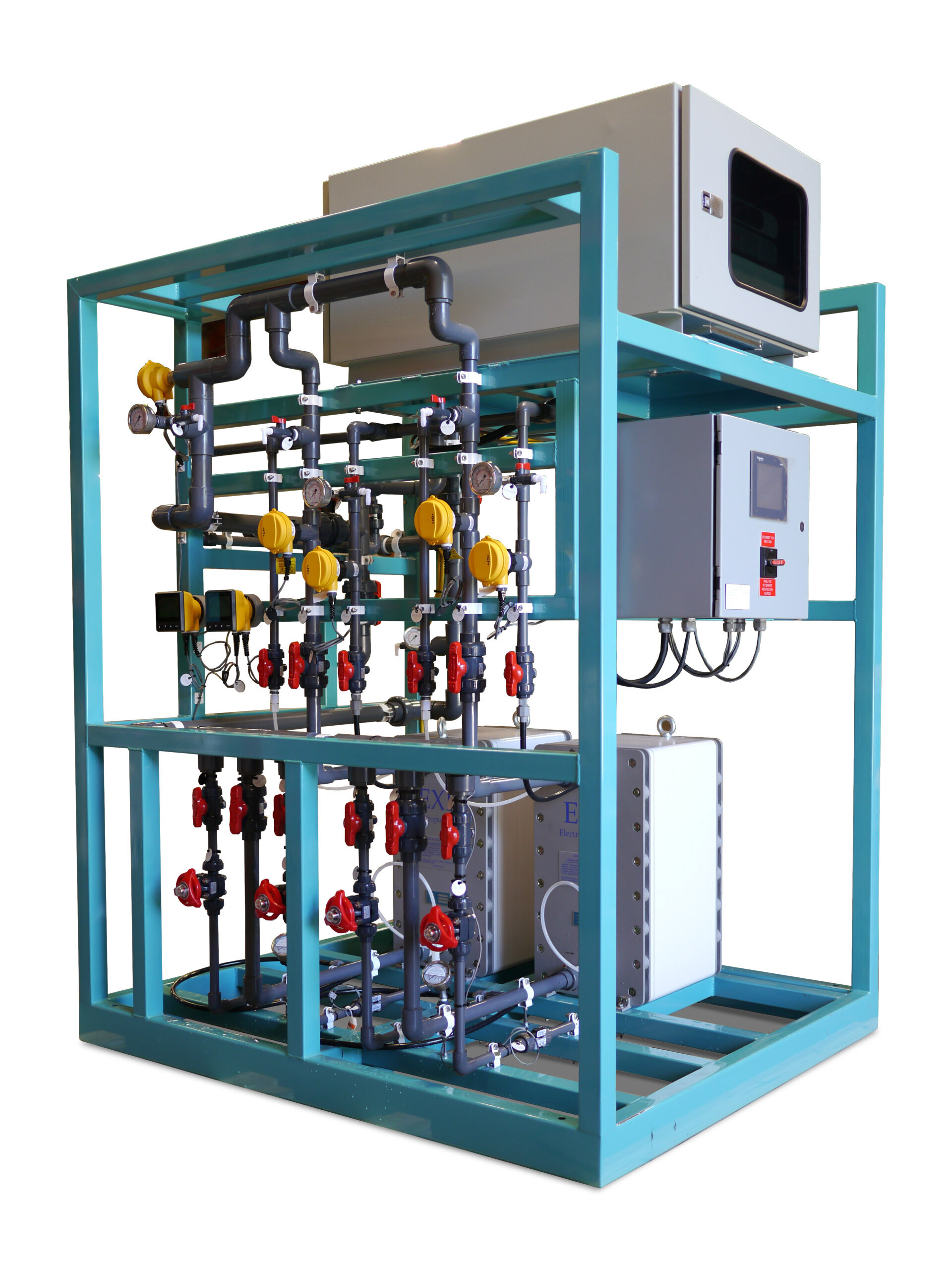

A product image with white background consisting of a cyan metal frame supporting electrodeionization technology comprised of processing units connected with various pipes with turn valves and gauges

Electrodeionization (EDI) Ultra Pure Water Systems

Electrodeionization (EDI) Ultra Pure Water Systems offer a continuous electrically driven membrane and resin ion separation technology to reach the strict specifications and ultimate conductivity of <15 MOhm for the semiconductor and pharmaceutical industries. EDI Systems offer a highly effective alternative to mixed bed demineralization to polish water to extremely low levels of dissolved solids.

A product image with white background consisting of a cyan metal frame supporting electrodeionization technology comprised of processing units connected with various pipes with turn valves and gauges

Product Overview

EDI systems do not require the periodic regeneration and downtime of resin-based treatment approaches and thus can operate continuously. This reduces maintenance and eliminates the need for regeneration chemicals and waste neutralization. Dissolved solids (cations and anions) are contaminants in some industrial processes. They cause scaling and fouling in boiler tubes, inhibiting heat transfer and system efficiency.

Uses

  • Cleaning the surfaces of semiconductor wafers and liquid crystal panels
  • Steam generators for power-generating turbines
  • Injection water for the healthcare and pharmaceutical industries
  • Blank water for microanalysis, which affects analysis results

Benefits

  • Provides extremely low total dissolved solids
  • Modular units that can be combined for larger flow rates
  • Effluent service water is near neutral pH
  • Minimum energy and maintenance requirements
  • Stand-alone modular skid mounted(pre-piped & pre-wired)
  • Continuous operation with no regeneration or hazardous chemicals required
  • Smaller footprint compared to mixed bed demineralization

Technical Specifications

An EDI Water Treatment System is a continuous electrically driven membrane and resin ion separation technology. RO product water from the Industrial RO Unit enters the EDI Module through an inlet valve and enters a stack of cells with cation and anion membranes separated by spacers. On opposite ends of the stack are a cathode and anode – each providing an electrical potential to drive the cations and anions through the respective one-way membranes to a waste channel. The product and waste channels contain a thin layer of mixed bed resin to provide a conductive path to facilitate the process. The result is a highly efficient system that removes all dissolved solids very close to hydrogen’s neutral potential (pH). The purified water is then piped out of the stack. For higher flow rate capabilities, multiple stacks can be plumbed together.

Ultrapure water is water that has been purified to very strict specifications, containing only negligible or trace quantities of ionic or organic contaminants. Ultrapure water conductivity is about 0,055 uS/cm at 25oC, also expressed as the resistivity of 18,2 MOhm.
