Ion Exchange Vessels for the removal of inorganic dissolved solids. The ion exchange process is an exchange of one ion for another, using a synthetic resin to perform the transfer of ions. These technologies are widely used for the removal of inorganic dissolved solid impurities from the feed water to steam-generating boilers or other process equipment to prevent scaling and oxidation damage.

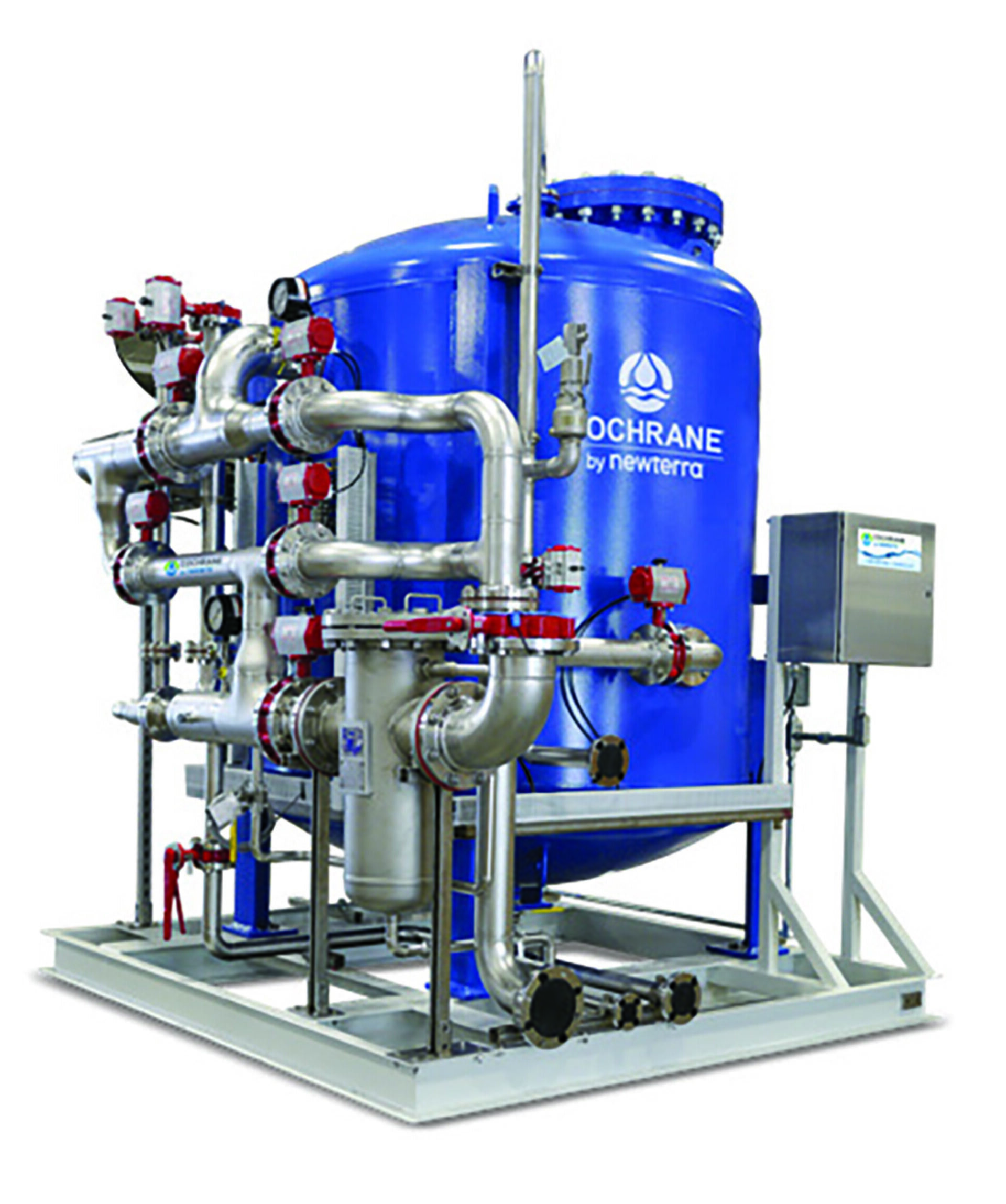

Newterra’s Ion Exchange Vessels are designed for high-efficiency treatment of water and wastewater in industrial applications. These vessels utilize ion exchange resins to selectively remove contaminants such as heavy metals, hardness ions, and other dissolved solids, resulting in high-purity water suitable for various industrial processes. Engineered for durability and performance, Newterra’s ion exchange vessels feature robust construction and are capable of handling large volumes of water, ensuring consistent operation and compliance with stringent water quality. Ideal for sectors like chemical manufacturing, power generation, and pharmaceuticals, these vessels offer customizable options to suit specific treatment requirements, providing a flexible and effective solution for complex water treatment challenges.
Features
Vessels: Carbon steel, stainless steel (SS) or fiber-reinforced plastic (FRP), American Society of Mechanical Engineers (ASME) coded/stamped options
Vessel Linings: Per vessel construction
Design Pressure: As required
Internals: 316 or 304 Stainless steel, Duplex SS, or schedule 80 polyvinyl chloride (PVC)
Media: Multiple options available dependent upon contaminants being removed
Regeneration Method: Media selection dependent
Face Plumbing: Carbon steel, SS or schedule 80 PVC
Valve Operation: Pneumatic, electric or manual actuated
Skid Mounted Option: Carbon steel or SS
Controls: Programmable logic controller (PLC), semi or fully-automatic, stager/timer, metered or manual
Benefits
Provides extremely low total dissolved solids
Effluent service water is near neutral pH (Mixed Bed)
Can be automatically regenerated based on time, flow, conductivity, or manually
Inlet/outlet pressure gauges and transmitters if required
Efficient internal designs provide a low-pressure drop across tank when clean
Minimum energy and maintenance requirements
Stand-alone tanks or modular skid-mounted (pre-piped & pre-wired) options
We’re Here to Support You
We understand your unique challenges. Beyond a technology solution, Newterra is dedicated to the entire lifecycle of your needs. Whatever support you need, Newterra probably has a solution to solve it..
Rental and Alternative Delivery
Whether your needs are short-term bridge, emergency or supplemental or long-term system deployment, Newterra has flexible solutions that alleviate the need for major capital expenditure.
From operations consultation and long-term service contracts embowered by our Internet of Things (IoT) platform to commissioning expertise and emergency ad-hoc needs almost anywhere in the world, our technical experts are available to serve you. Let Newterra keep your systems optimized.
From licensed and certified removal, to exchange, to supply, Newterra provides the gamut of services to keep your media and membrane solutions at peak performance. Let the same experts who build your systems help you keep them running.
Rely on Newterra for all your aftermarket needs. Our teams have the background and tools to serve you effectively. Nothing beats original equipment manufacturer (OEM) service. Anything you need, we’re here for you.
Remove all cations and anions or to a very low level
Total dissolved solids are considered contaminates and cause scaling and under-scale corrosion in industrial processes
Total dissolved solids will scale and foul boiler tubes inhibiting heat transfer
