Home SEAMEGA Modular Seawater Desalination Systems

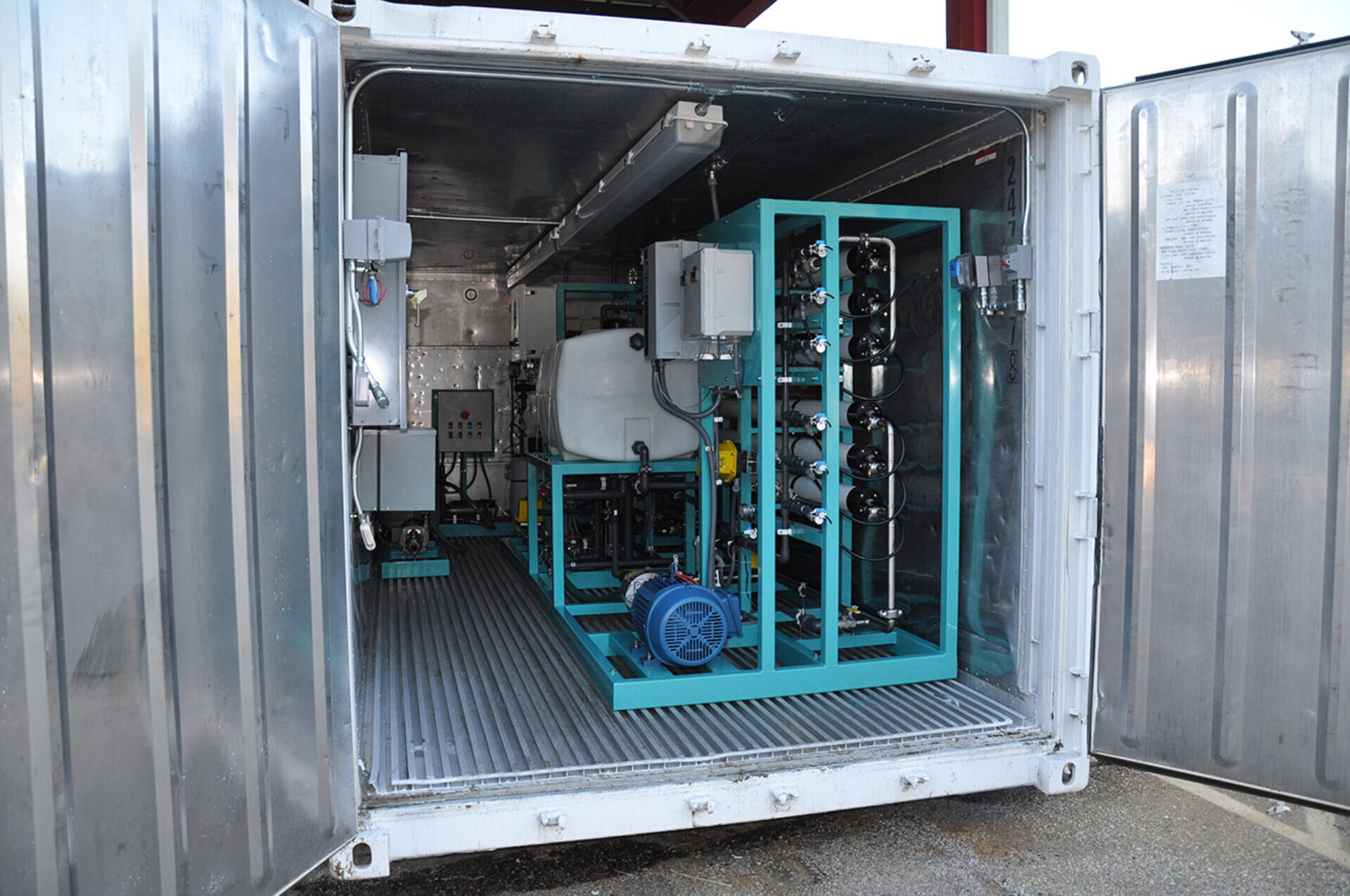

A modular mobile Seamega sea water desalination system consisting of a shipping containing housing a cyan metal frame supporting a small motor, water tank, electrical panels, and various horizontally positioned filtration pipe units, overhead lighting and additional electrical panels accompany the unit

SeaMega
Desalination System

The modular, packaged Newterra SeaMega Desalination System offers seawater reverse osmosis (SWRO) from brackish water or seawater, including potable water, boiler feedwater, irrigation and plant process water. With our pre-engineered systems, you receive fast delivery and installation to get up and running quickly while optimizing operating costs.

A modular mobile Seamega sea water desalination system consisting of a shipping containing housing a cyan metal frame supporting a small motor, water tank, electrical panels, and various horizontally positioned filtration pipe units, overhead lighting and additional electrical panels accompany the unit

Product Overview

For applications with challenging feedwater, Newterra provides a variety of pre-filtration options. The SeaMega series includes SeaMega/C, our containerized modular solution; SeaMega/S, our skidded solution; and SeaMega/F, our customized modular facilities for larger applications.

Technical Specifications

SeaMega Containerized Facilities

ModelHPGPMGPDm3/d
SeaMega/C-50014098140530
SeaMega/C-1000300180260K1000
SeaMega/C-1500500275400K1500
*Based on feedwater TDS 36,000 ppm and feed temperature of 25°C

SeaMega Skid Mounted Packages

ModelHPGPMGPDm3/d
SeaMega/S-2030913K49
SeaMega/S-40601420K75
SeaMega/S-801004260K225
SeaMega/S-12012084120K454
SeaMega/S-14014098140K530
SeaMega/S-200250125200K750
SeaMega/S-260300180260K1000
SeaMega/S-320400222320K1200
SeaMega/S-360500250360K1400
*Based on feedwater TDS 36,000 ppm and feed temperature of 25°C

Related Content

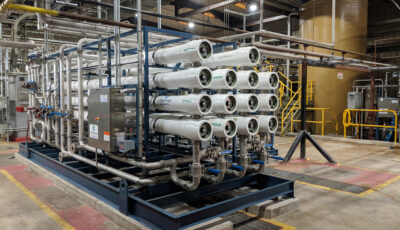

Newterra custom reverse osmosis system consists of a fourteen white pipes stacked in four columns consisting of four pipes, three pipes, four pipes, and three pipes when read left to right with a blue enameled steel frame with steel pipes leading to a control box within a water treatment warehouse.

Custom Reverse Osmosis Systems

Custom Reverse Osmosis (RO) Systems provide effective, continuous dissolved solids recovery of up to +80% in a modular and scalable design. These tailored systems can accommodate a wide range of feed water qualities with a single or double pass and differing stage configurations and arrays. You’ll receive a consistent permeate quality for your specific application.

A product image with white background consisting of a cyan metal frame supporting electrodeionization technology comprised of processing units connected with various pipes with turn valves and gauges

Electrodeionization (EDI) Systems

Newterra Electrodeionization (EDI) Ultra Pure Water Systems offer a continuous electrically driven membrane and resin ion separation technology to reach the strict specifications and ultimate conductivity of 10 uS/cm for the semiconductor and pharmaceutical industries.

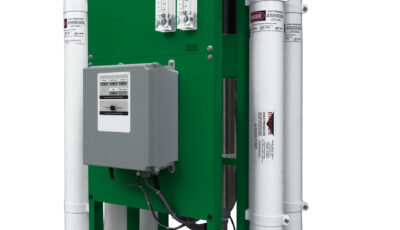

A product image with a white background of an EPRO reverse osmosis water filtration system consisting of a green metal frame with five vertically oriented water filters connected by metal hoses with an electrical panel with gauges
