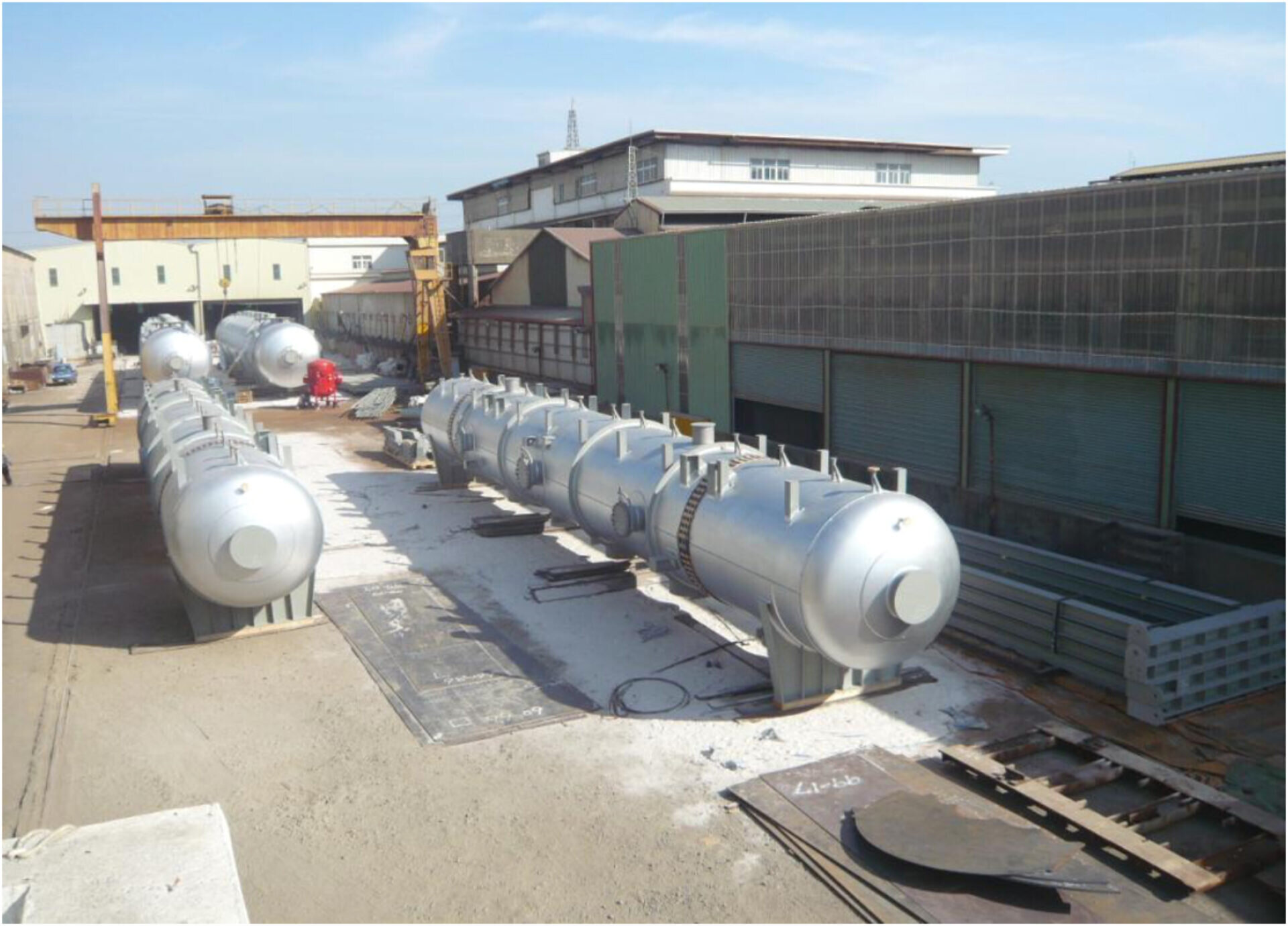

Four Cochrane counterflow deaerator units sit outside an industrial or manufacturing warehouse consisting of horizontally positioned metal vessels with numerous support points

Counterflow Deaerators

Counterflow Deaerators are built for reliability in large-capacity industrial applications.  Simplicity and a rugged design offer cost savings over a varying load range, especially where a high percentage of condensate returns are introduced.  They are American Society of Mechanical Engineers (ASME) stamped and meet Heat Exchange Institute (HEI) requirements.

Four Cochrane counterflow deaerator units sit outside an industrial or manufacturing warehouse consisting of horizontally positioned metal vessels with numerous support points

Product Overview

Newterra’s Counterflow Deaerators epitomize cutting-edge technology in the removal of dissolved gases, primarily oxygen and carbon dioxide, from boiler feedwater to prevent corrosion and enhance the efficiency of steam-generating systems. Featuring a counterflow design, these deaerators maximize contact between water and steam, facilitating exceptional gas removal efficiencies. Tailored for demanding industrial applications, they ensure a consistent supply of high-quality, deaerated water, vital for optimizing the performance and longevity of boilers and steam infrastructure. Newterra’s Counterflow Deaerators are recognized for their operational reliability, energy efficiency, and ease of integration into existing systems, making them an essential component in maintaining the health and efficiency of industrial boiler operations.

Features

  • Trays: Type 430 stainless steel (SS), pan type, riveted construction
  • Water distributor: 316 SS. Newterra Lock-N-Load Spray Nozzles
  • Design pressure: As required
  • Deaerator top: Welded Steel Plate, ASME stamped
  • Storage tanks: Welded Steel Plate, ASME stamped
  • Vent condenser: Direct Contact Type with Stainless Steel baffling
  • Deaerating Trays: Type 430 SS, assembled with stainless steel rivets. Each tray assembly consists of eight or twelve tray channels arranged in two or three staggered tiers of four each, depending on the application.

Technical Specifications

Incoming water flows through the spray nozzles and enters the vent condensing chamber as a thin-walled, hollow cone spray pattern. Latent heat transfer is instantaneous because of the intimate water-to-steam exposure.

As the water reaches the tray stack, its temperature is within 2° F of the saturated steam temperature, and virtually all dissolved oxygen and free carbon dioxide have been removed. Nearly all of the steam has now condensed, permitting the non-condensible gases to be carried through the vent by the remaining steam, exiting as a plume.

The preheated water is distributed over the trays and flows down over staggered pans in the trays, making its way through pure steam flowing in the opposite direction. The water leaving the bottom layer of the trays is fully deaerated.

Related Content

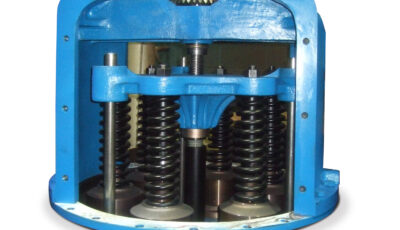

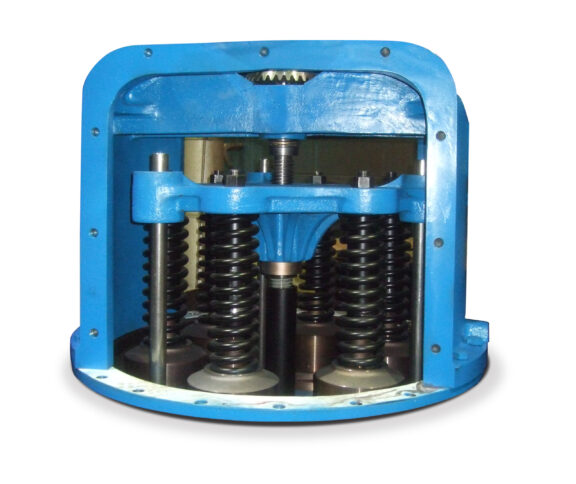

View of a multiport relief valve with access panel removed, interior consists of a blue cast metal piece supported by various metal rods, some with springs bolted to the cast metal piece, a threaded rod runs through the center of unit

Multiport Relief Valves

Newterra Multiport Relief Valves are designed for safety and to dampen the pressure swings within deaerators, steam lines and associated components.

Interior view of water treatment processing equipment including a walkway for access to a horizontal metal vessel, two blue vertical vessels with equipment connected by pipes of various sizes and materials containing gauges and valves.

Parallel Downflow Deaerators

Newterra Parallel Downflow Deaerators offer high performance between the extremes of 100% make-up water (below 50° F), mostly hot condensate and substantial flashing returns.

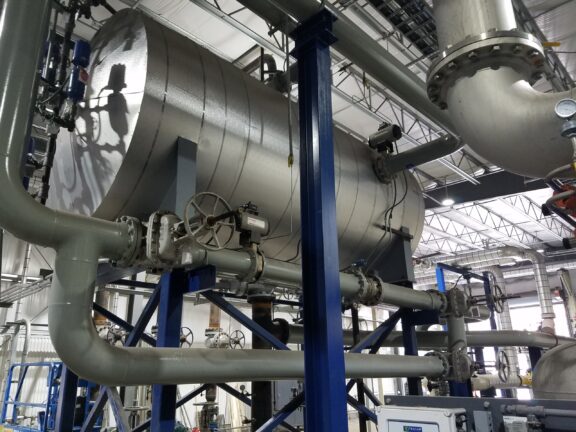

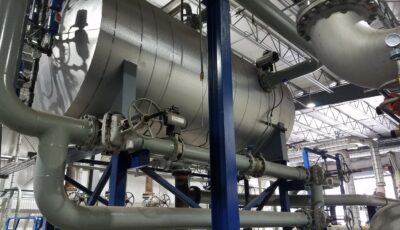

Industrial spray atomizing deaerator in an elevated installation with steel cylindrical tank near the ceiling in an industrial application surrounded by steel pipes and blue support

Spray Atomizing Deaerator

Newterra Spray Atomizing Deaerators are built for industrial applications to supply high-purity water to maximize the efficiency and lifespan of boiler systems.

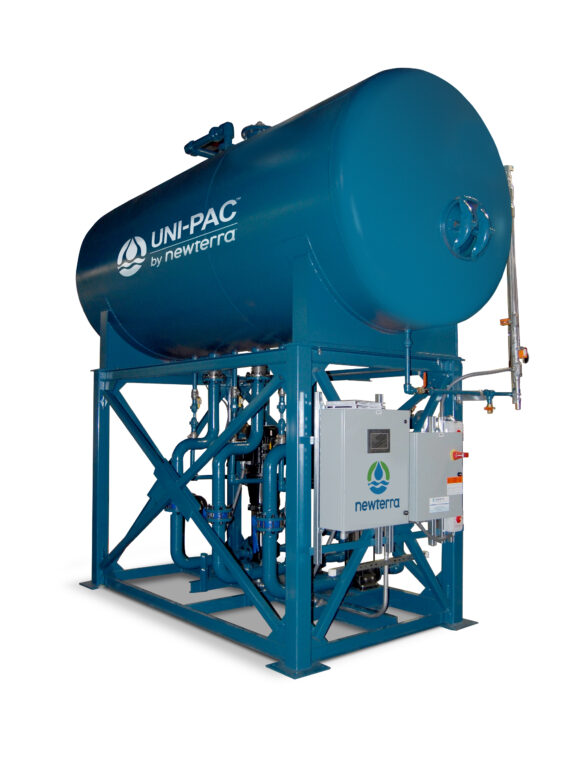

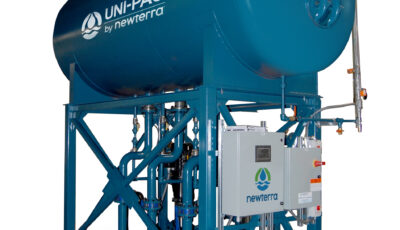

A Uni-pac by Newterra system consisting of a blue metal frame made of dimensional steel, with an electrical panel, pipes of various sizes connected to an elevated horizontal tank with components and valves on the pipes and tank.

UNI-PAC Packaged Deaerator

Newterra UNI-PAC Packaged Deaerators capacity ranges from 10,000 lbs per hour and larger for parallel downflow, counterflow or spray-atomizing to best suit every application.

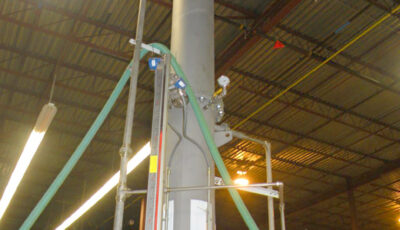

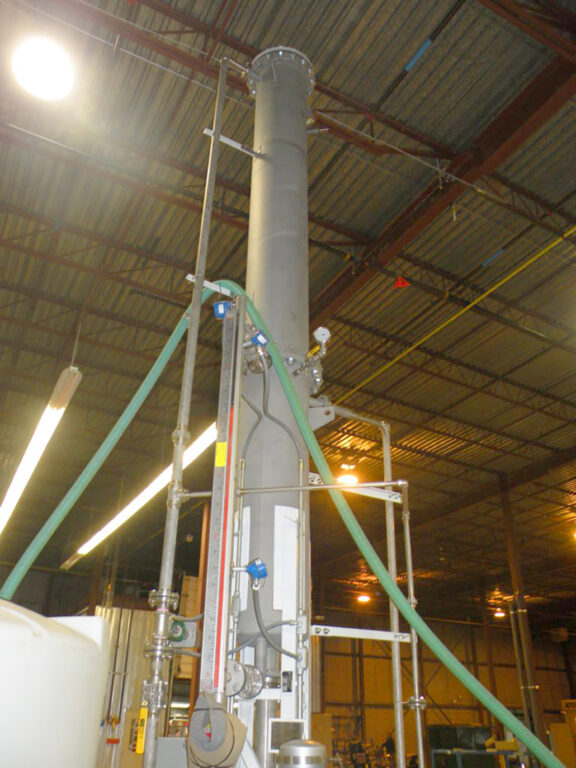

A vacuum dearator using forced air degassifiers in an industrial warehouse consisting of a large metal or concrete tube with a pressure or temperature gauge, hoses, and lever valves.
