Home UNI-PAC Packaged Deaerator

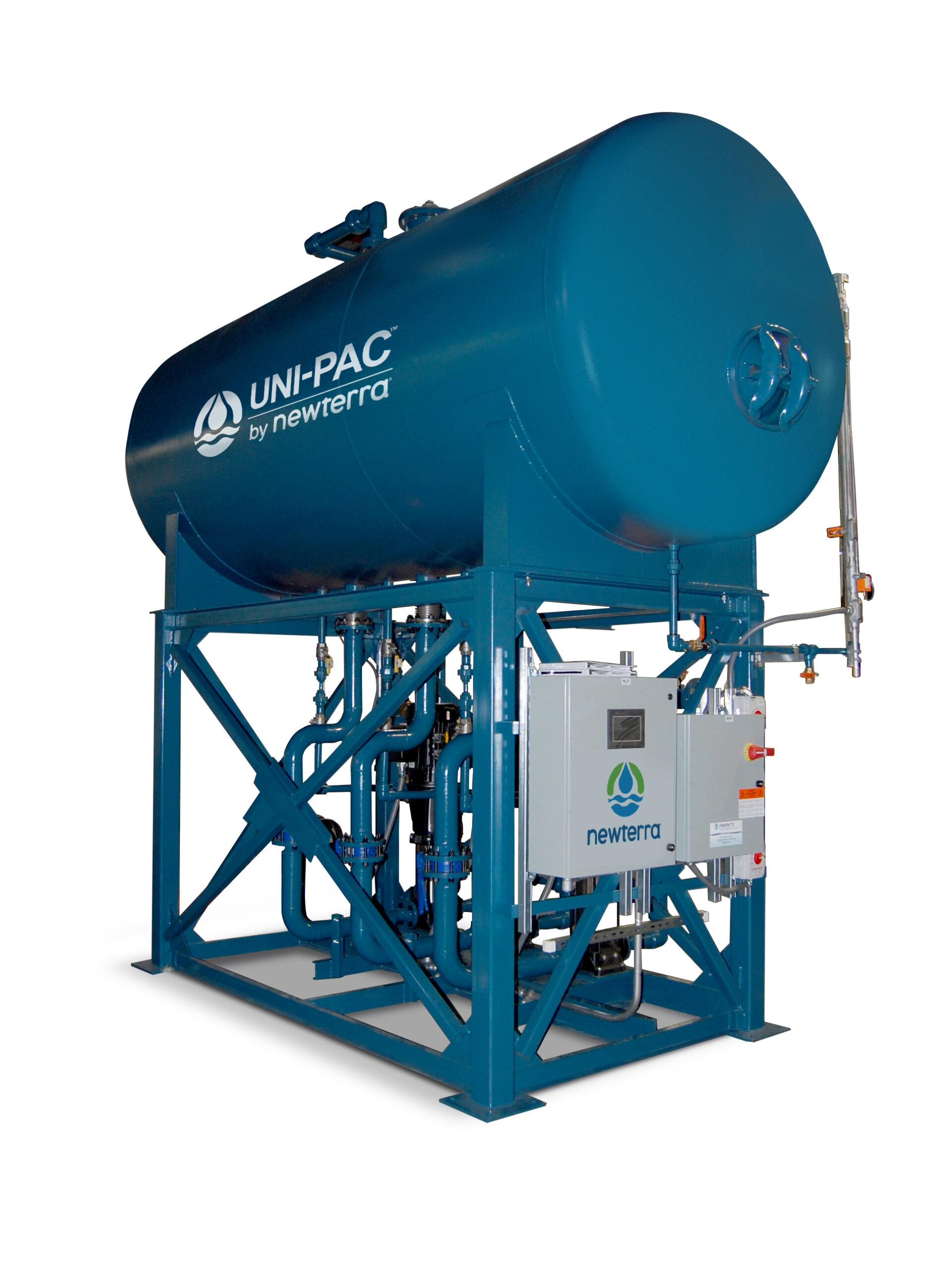

A Uni-pac by Newterra system consisting of a blue metal frame made of dimensional steel, with an electrical panel, pipes of various sizes connected to an elevated horizontal tank with components and valves on the pipes and tank.

UNI-PAC Packaged Deaerators

UNI-PAC Packaged Deaerator’s capacity ranges from 10,000 lbs per hour and larger for parallel downflow, counterflow or spray-atomizing to best suit every application.

A Uni-pac by Newterra system consisting of a blue metal frame made of dimensional steel, with an electrical panel, pipes of various sizes connected to an elevated horizontal tank with components and valves on the pipes and tank.

Product Overview

The UNI-PAC Packaged Deaerators by Newterra offer an integrated solution for the effective removal of dissolved gases, particularly oxygen and carbon dioxide, from feedwater. This system is crucial for preventing corrosion and enhancing the operational longevity of boilers and steam-generating systems. Designed with efficiency in mind, the UNI-PAC series utilizes a proven spray-type deaeration method, ensuring high oxygen removal rates and consistent water quality. Compact and fully assembled, these deaerators are easy to install and integrate into existing water treatment processes, making them ideal for a variety of industrial applications. With their robust design and reliable performance, UNI-PAC Packaged Deaerators provide a cost-effective and long-term solution for maintaining the integrity and efficiency of boiler feedwater systems.

Features

  • Two-stage spray-type deaeration utilizing Newterra Accuspray Spray Nozzles and Atomizing Valve
  • Reduces dissolved oxygen concentration of boiler feed water to <7 ppb
  • Compact horizontal tank design for installation in tight spaces, including reduced headroom
  • Welded steel deaeration tank with American Society of Mechanical Engineers (ASME) stamp
  • Fully integrated system with tank, piping, and accessories pre-plumbed, pre-wired and pre-tested at the manufacturing plant
  • Variable orifice self-regulating atomizing valve assures maintenance of energy required and guaranteed performance at rates of flow 10-100% of total capacity

Benefits

  • Designed for many commercial and light industrial applications including colleges, hospitals, prisons, government buildings, industrial plants, military bases, etc.
  • Systems come fully factory tested at the manufacturing facility
  • Systems are fully pre-engineered for quality assurance and fast delivery

Technical Specifications

  • 7 ppb (0.005 cc/L) O2 content
  • 10-minute storage capacity standard
  • Dual, vertical multi-stage pumps
  • Control panel with motor starters and level alarm lights
  • All accessories required to operate the system
  • Custom accessories and options available

UNI-PAC ModelRating
lb/hr
Steam InletTank ODTank SSTanks OALOverflow
Minutes
UP-AH3-1010,0003″4′-0″9′-0″11′-7″23
UP-AH3-2020,0003″4′-0″9′-0″11′-7″13
UP-AH3-3030,0003″4′-6″11′-0″12′-9″13
UP-AH3-4040,0003″4′-6″11′-0″12′-9″10
UP-AH3-5050,0004″5′-0″12′-0″13′-11″12
UP-AH3-6060,0004″5′-0″12′-0″13′-11″10
UP-AH3-7070,0006″5′-6″13′-0″15′-1″12
UP-AH3-8080,0006″5′-6″13′-0″15′-1″11
UP-AH3-9090,0008″6′-0″13′-0″15′-3″12
UP-AH3-100100,0008″6′-0″13′-0″15′-3″11
