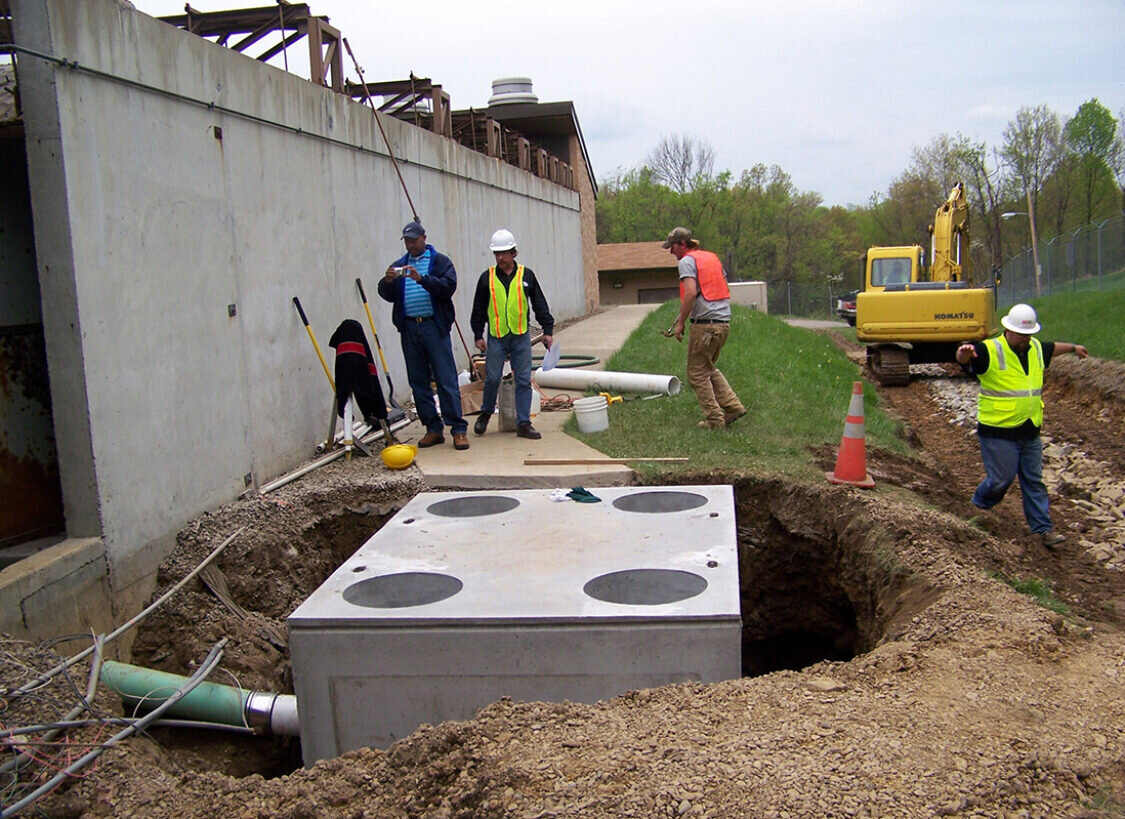

The Clara Gravity Separator offers a patented oil-grit-trash-water separator for stormwater that can be used as a standalone treatment or in a treatment train configuration. Clara Separators remove dirt, oil and floatables by gravity separation. The built-in internal high-flow bypass traps pollutants in this below-ground structure even during peak runoff events. Clara Separators are recommended when suspended solids concentrations are greater than 200 mg/L and oil is greater than 10 mg/L
Clara Gravity Separators target free oil, settleable solids, floatables and trash, and settleable metals.
We understand your unique challenges. Beyond a technology solution, Newterra is dedicated to the entire lifecycle of your needs. Whatever support you need, Newterra probably has a solution to solve it..
Whether your needs are short-term bridge, emergency or supplemental or long-term system deployment, Newterra has flexible solutions that alleviate the need for major capital expenditure.
From operations consultation and long-term service contracts embowered by our Internet of Things (IoT) platform to commissioning expertise and emergency ad-hoc needs almost anywhere in the world, our technical experts are available to serve you. Let Newterra keep your systems optimized.
From licensed and certified removal, to exchange, to supply, Newterra provides the gamut of services to keep your media and membrane solutions at peak performance. Let the same experts who build your systems help you keep them running.
Rely on Newterra for all your aftermarket needs. Our teams have the background and tools to serve you effectively. Nothing beats original equipment manufacturer (OEM) service. Anything you need, we’re here for you.
| Model | Treatment Rate (gpm) | Buried Footprint (ft x ft) | Sediment Storage (cy) | Oil/Floatable Storage (gal) |
|---|---|---|---|---|
| 25 | 320 | 7 x 9 | 1.8 | 185 |
| 40 | 540 | 7 x 13 | 3.0 | 310 |
| 70 | 900 | 8 x 16 | 5.0 | 510 |
| 90 | 1120 | 9 x 17 | 6.4 | 650 |
| 110 | 1400 | 11 x 17 | 8.0 | 820 |
| 210 | 2700 | 11 x 28 | 10.0 | 1500 |
Options:
