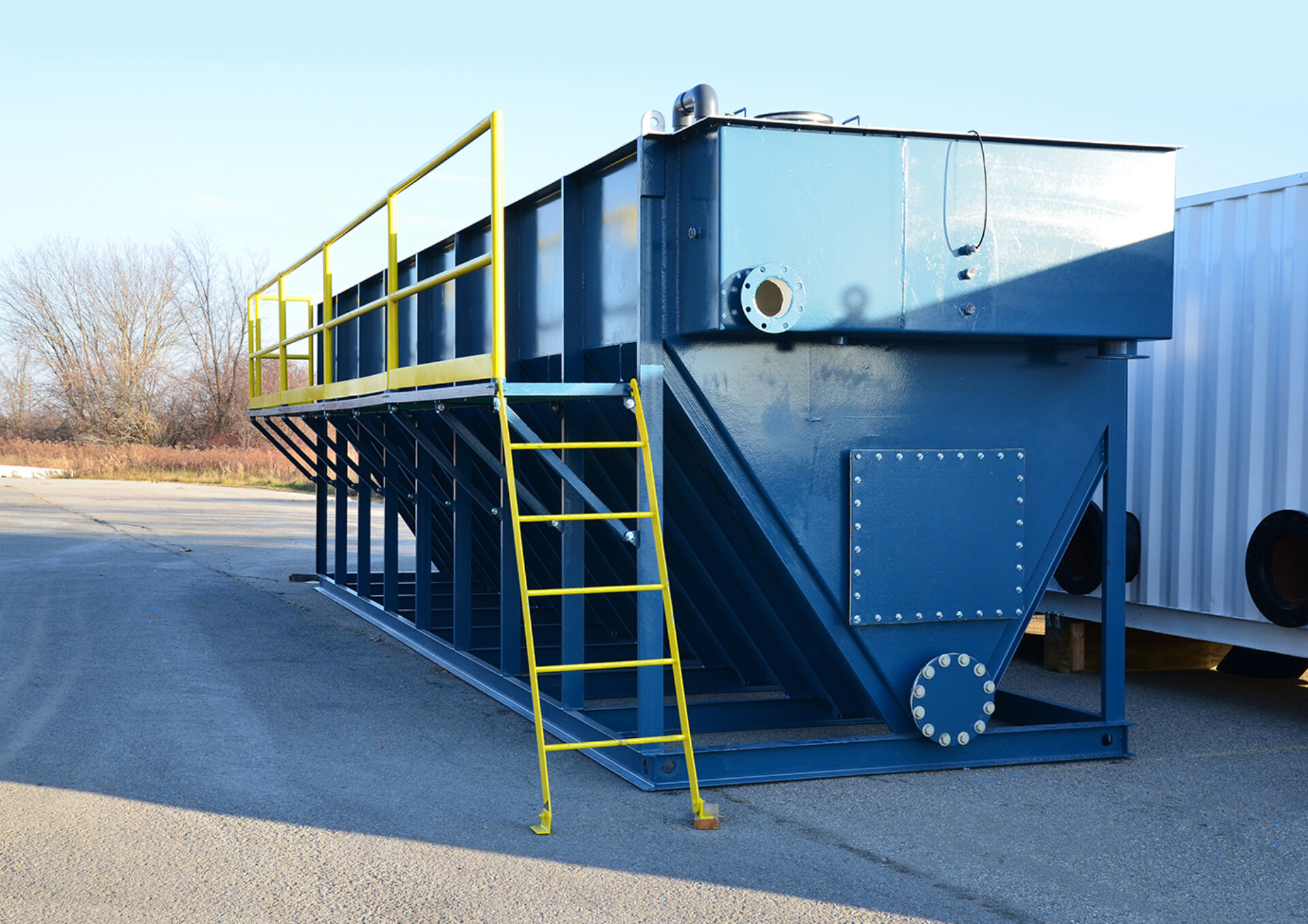

A Newterra Clara longbox filtration unit in an industrial setting consisting of a yellow ladder and guardrail attached to the unit with a V shaped base running the length of the box with a rectangular box over it, riveted access panels can be seen at the base of the unit

LongBox Clarifiers

Newterra LongBox Clarifiers offer you modular, high-flow sediment and suspended-solids removal on groundwater treatment and dewatering projects. These innovative, rectangular clarifiers are also extremely well suited for potable water pretreatment, and the treatment of process water, mine groundwater and wastewater. They offer almost three times the settling area of conventional weir tanks more than twice their size, and 25% more settling area than similarly sized conventional tube.

A Newterra Clara longbox filtration unit in an industrial setting consisting of a yellow ladder and guardrail attached to the unit with a V shaped base running the length of the box with a rectangular box over it, riveted access panels can be seen at the base of the unit

Product Overview

Available with tube settlers or inclined plates, Newterra LongBox Clarifiers provide excellent removal efficiencies compared to traditional weir tanks and settling or frac tanks commonly used for sediment treatment on construction sites and in other applications.  They are built for easy transport on flat-bed trucks to sites and remote areas. Once on location, installation, setup and operation are fast and simple – even on uneven ground.

Features

Quick Leveling On-Site: Newterra LongBox Clarifiers allow simple field adjustments to accommodate non-level ground up +/-2” on the width of the tank and +/-4” across the length of the tank.

Operator Access Platform: : A integrated, fold-away catwalk provides safe, convenient access to the top of the clarifiers for inspection, determining sludge depth, cleaning and operational adjustments.

Easy-Access Sludge Removal: Side access to the clarifier allows access to the sludge below the clarifier media while standing on the operator access platform.

Higher Solids Load Handling Capacity: The innovative design features a shorter plate pack – allowing tighter plate spacing than long or tall lamella clarifiers.

Quiescent Settling Zone Configuration: Sludge from the quiescent zone and plate pack fall into same location for easier sludge removal.

Carbon Steel Construction: Sand-blasted epoxy liner provides long-term chemical resistance. Other materials of construction are available.

Newterra Sludge Extractor: This flexible, broom-like wand features a suction head for easy removal of sludge from below the clarifier media.

Benefits

  • Pre-built & fully assembled
  • Multiple configurations with flow rates up to 2,500 GPM
  • Available as insulated, self-contained system for cold weather applications
  • Fast, simple on-site set-up
  • Operates on non-level ground
  • Easy sludge monitoring and removal
  • Operator access platform for easy access and maximum safety
  • Durable carbon steel construction
  • Designed for easy shipping

Technical Specifications

Newterra LongBox® Clarifiers are available in several different configurations to address a wide range of flow rates, sites and operational considerations:

Series Length Width Height Advantages & Shipping Notes
LBN4’ to 38’5’4”6’4”• Insulated for cold weather applications, and fully enclosed for operation & maintenance withinISO shipping container• Flatbed trailer
LBI4’ to 38’7’7”8’5”• Fits within an ISO shipping container for simplified international transport• Flatbed trailer; configured for use with tilt & load trucks for easy deployment
LB4’ to 40’7’10”9’8”• Drop deck trailer; configured for use with tilt & load trucks for easy deployment• No permits req’d
LBW8’ to 40’11’9’8”• High flow rate• Drop deck trailer; no permits or escort req’d;
LBWT8’ to 48’10’8”11’4”• High flow rate• Stretch double drop trailer; permit req’d; no escort req’d
LBXWT16’ to 40’ 12’4”11’4”• High flow rate• Stretch double drop trailer; permit & escort req’d

Option Features

Insulated Clarifier: Available as a stand-alone, cold-weather product where the tank is enclosed in rigid, insulated steel panels. Panels are removable, providing access to the top of the tank and equipment spaces around the clarifier. Heating can be incorporated for cold-weather applications.

Enclosed Top: Features hatches and removable sections to facilitate maintenance requirements.

Inclined-Plate Settlers: Standard equipment tube settling media can be replaced with optional flat inclined plates made from carbon steel, stainless steel or PVC.

Open Gravity Clarifier: Available without settling media for applications where there is high potential of plugging the settling media.
