Zinc-B-Gone Roof Runoff Filter

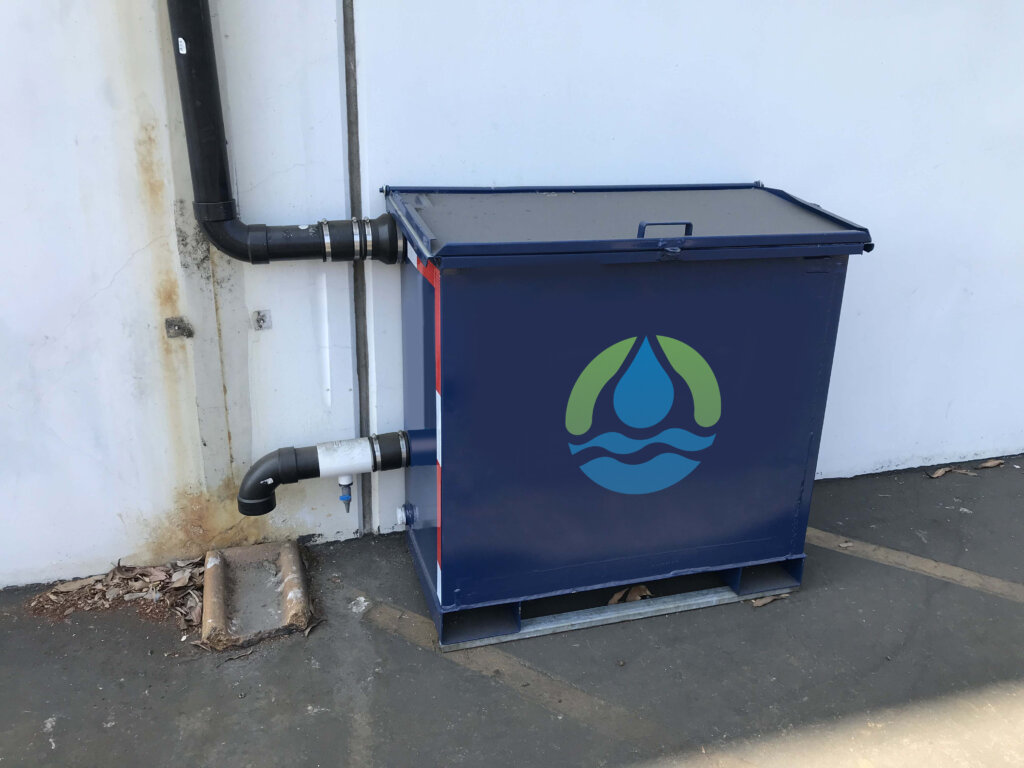

The sorptive patented Zinc-B-Gone Media Filtration System provides industrial stormwater roof runoff treatment. The system’s best manufacturing practices (BMP) remove dissolved metals in a simple, easy-to-use configuration. The Zinc-B-Gone System is typically installed above ground in line with a rooftop downspout, and its three models come scalable up to 1200 GPM for rooftops 0.5 acres and up. Targeted metals include copper, zinc, iron, lead, aluminum, nickel, cadmium, and other metals.

Newterra Zinc B Gone blue enamel treatment boxes with out of stock graphic featuring a green ring white field and black text.

Product Overview

Zinc-B-Gone is specifically designed to reduce dissolved metals found in roof runoff and cooling tower blowdowns.

The Zinc-B-Gone Filter’s simple configuration can be used in various applications such as:

  • Industrial stormwater roof runoff
  • Cooling tower blow down
  • Mining operations runoff
  • Galvanized application runoff

Download the Technology Sheet for performance charts.

Features

  • Removes dissolved zinc, copper and lead
  • Super-duty tank for many years of service
  • Ideal for total suspended solids (TSS)
  • Uses passive filtration, no chemicals, no backwash
  • Open top for easy access and operation
  • Operates unattended, 24/7
  • Gravity flow-through system, no moving parts

Technical Specifications

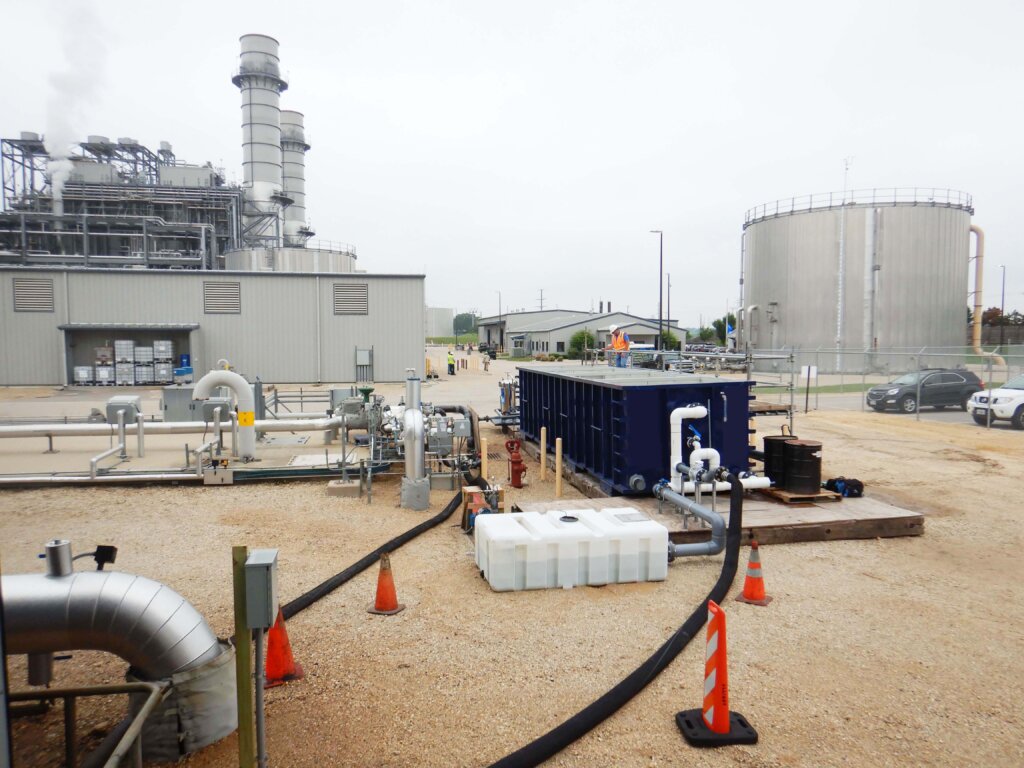

Zinc-B-Gone Roof Runoff Filter -Pro

  • Ideal for TSS
  • Super-duty tank for many years of service
  • Rated from 25 GPM to 1200 gpm clean, dependent on model
  • Exceptional performance and treatment capacity
  • Reduces 500 ug/L (0.5 mg/L) zinc to benchmark/action level
  • Separate pretreatment and filtration chambers for reduced
  • system maintenance
  • Internal high flow bypass, totalizing flow meter, flow control
  • valve, inlet & outlet sample ports
  • Includes factory assistance for installation
  • Cover, freeze protection and other options available

Zinc-B-Gone Roof Runoff Filter -Custom

For stormwater treatment or reuse applications

  • Self-contained intermodal containers
  • Exceptional performance and treatment capacity
  • Scalable for flows from 100 GPM to 10,000 GPM
  • Best choice for sites with freezing weather
  • Integrate pretreatment and polishing in one unit
  • Includes factory assistance for installation
  • Integrated heat, A/C and lighting
  • Custom designed for your site

Related Content

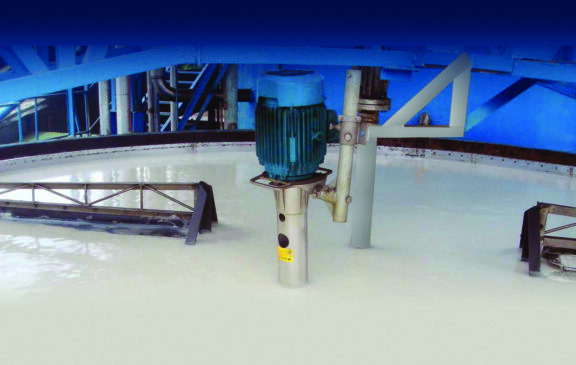

Innermost view of a Newterra microfloat dispersed air flotation DAF system where a central round tank is filled with water aerated to the point of being a milky white foam texture by an aerator mounted with metal brackets in the middle of the image with the tank structure supported by metal reinforcing structures, the view is underneath a blue support structure with stairs and various vertical metal pieces can be seen in the background

Aire-O2® Microfloat Dispersed Air Flotation (DAF) System

Newterra Aire-O2® Microfloat Dispersed Air Flotation (DAF) System is an effective and reliable physical/chemical pre-treatment technology at a much lower cost.

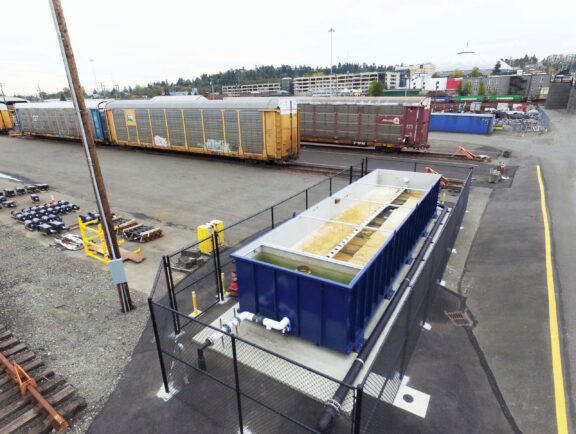

Low aerial view of a railyard with a blue Newterra modular water treatment processing unit divided into two bays connected to an underground pipe with a chain link fence around the unit, train cars sit nearby on the end of the rail line, condos and apartment buildings of a medium size city are in the background

Aquip Media Filtration System

Newterra Aquip Media Filtration System offers reliable industrial stormwater treatment to remove pollutants such as suspended solids, turbidity, heavy metals, organics, and nutrients. Targeted metals include copper, zinc, iron, lead, aluminum, nickel and cadmium.

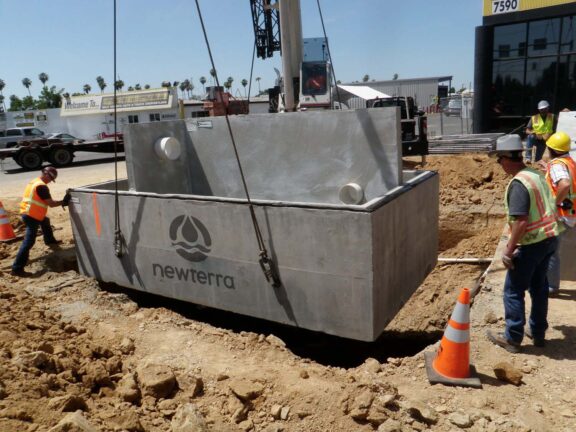

A Newterra Clara filter is lowered into a prepared dirt site at an auto recycler with four technicians guiding the unit or looking on as a crane lowers the concrete box and divider into place

Clara Filter

Newterra Clara Filter provides a patent pending passive media filter that can serve as a standalone treatment or as a pretreatment best management practice (BMP).

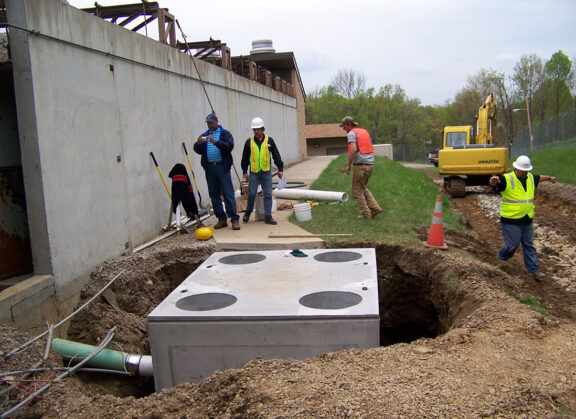

Three technicians and a manager install a Clara Gravity Separator from Newterra at a new construction site for industrial use

Clara Gravity Separator

Newterra Clara Gravity Separator provides a patented oil-water separator for basic industrial stormwater treatment that can be used as a standalone treatment or as part of a treatment train.

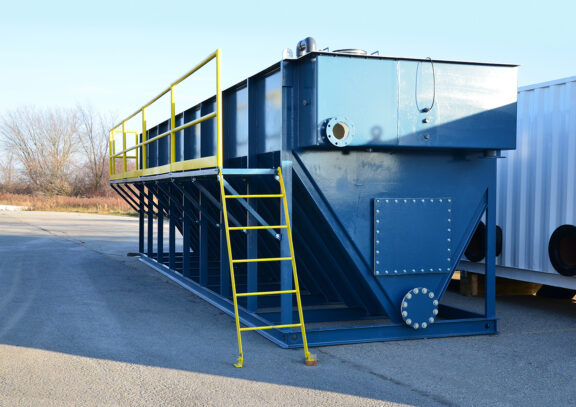

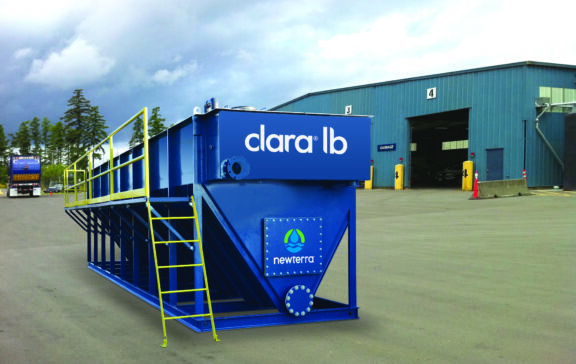

Newterra's Clara Long Box Separator consisting of a filter like a shipping container with a V like base and ladder to view the interior of the box

Clara LongBox (LB) Separator

Newterra Clara LongBox (LB) Separators offer high sediment-loading, high flow-rate active stormwater treatment separators in a flexible, modular package.

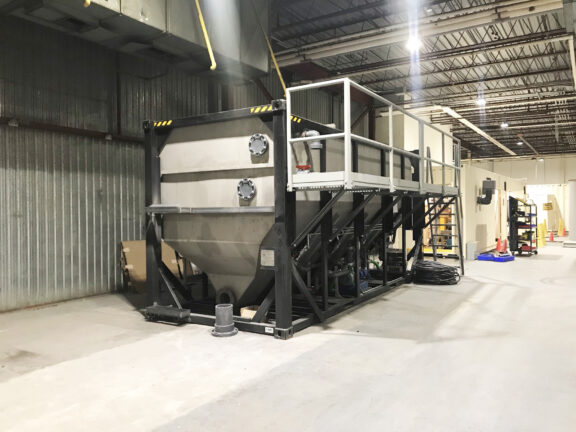

A Newterra longbox filter sits in an industrial building consisting of a metal box with a v shaped base with a black frame and a maintenance access walkway and set of stairs

Construction Dewatering

Newterra Construction Dewatering Water Treatment Systems offer you modular, high-flow sediment and suspended solids removal.

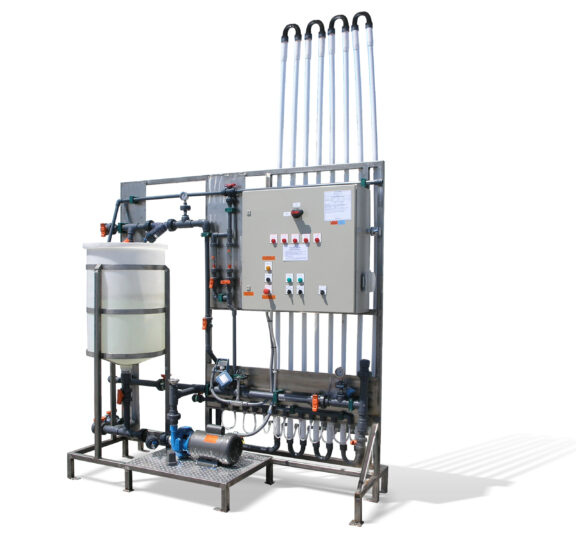

Newterra ultrafiltration system consisting of a tank, pipes, hoses, and tubing to a control panel with switches on an elevated stand.

Industrial Microfiltration/Ultrafiltration & NanoFiltration Systems

Newterra Microfiltration, Ultrafiltration (UF) and Nanofiltration Systems for total suspended solids (TSS) and oil removal from industrial wastewater and reverse osmosis (RO) pretreatment.

Ion exchange resin pieces

Ion Exchange Resins

Various technologies use Ion Exchange Resins (IX) to remove inorganic dissolved solid impurities from feed water, process equipment and steam-generating boilers to prevent scaling and oxidation damage.

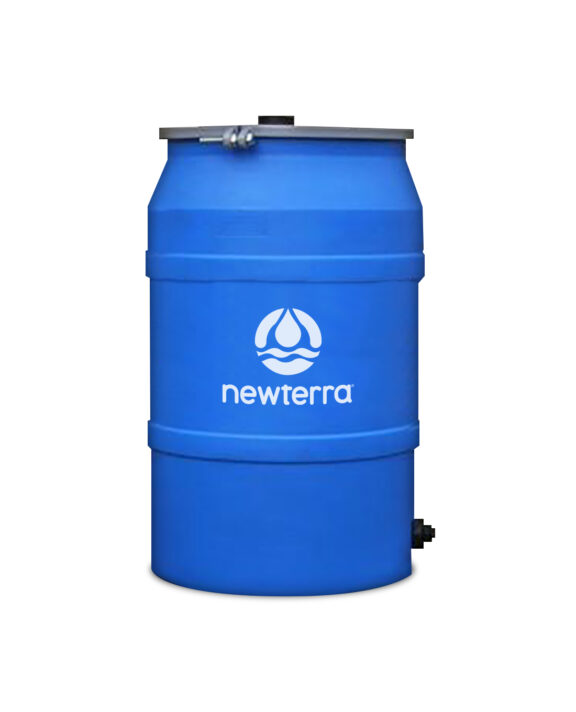

A lidded blue barrel branded with Newterra logo and a black outflow plug

Liquid Phase Active Carbon Adsorber Drum Systems

Newterra CANSORB and ECONO Liquid Phase Granular Activated Carbon Adsorber Drum Systems utilize a wide variety of carbon media for environmental remediation and purification applications and are available in steel, carbon steel and polyethylene.

Three white Newterra branded tanks in the field process water while three technicians observe the treatment plant, an additional holding tank and modular treatment container are in the background

Liquid Phase Bag Filtration Systems

Newterra Liquid Phase Bag Filtration Systems provide reliable and efficient performance in removing suspended solids or gelatinous particles from liquid streams

A Newterra Clara longbox filtration unit in an industrial setting consisting of a yellow ladder and guardrail attached to the unit with a V shaped base running the length of the box with a rectangular box over it, riveted access panels can be seen at the base of the unit

LongBox Clarifiers

Newterra LongBox High-flow Clarifiers offer you modular, high-flow sediment and suspended-solids removal on groundwater treatment and dewatering projects.

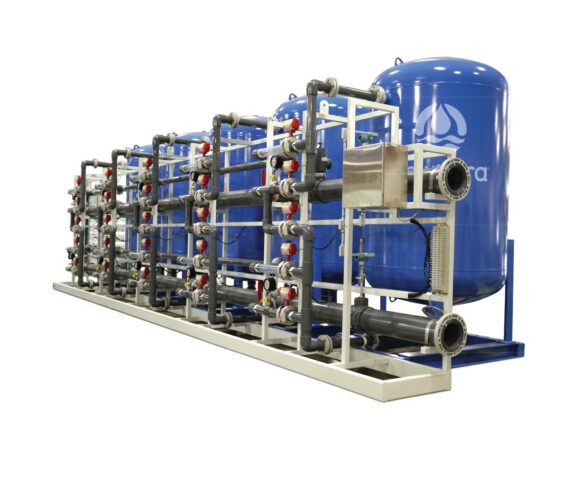

A white and blue metal frame supports a cochrane multi media filtration system consisting of five elevated blue vessels and a series of pipes in various sized containing gauges and other omponents supporting the water filtration process

Multi-Media Filtration

Newterra Multi-Media Filtration is a robust, industrial quality system to remove total suspended solids (TSS), turbidity, and silt density index (SDI): dirt, sand, and sediment.

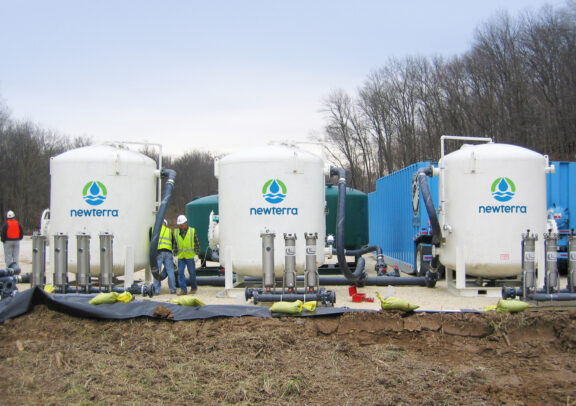

Four Newterra branded white tanks treat water for PFAS outdoors

PFAS Water Treatment Systems

Activated Carbon Adsorption Systems For Per- and Polyfluoroalkyl substances (PFAS) Water Treatment

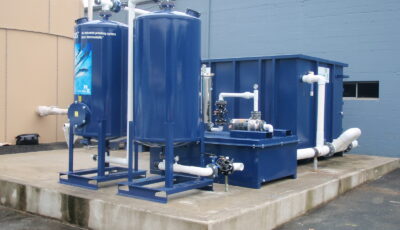

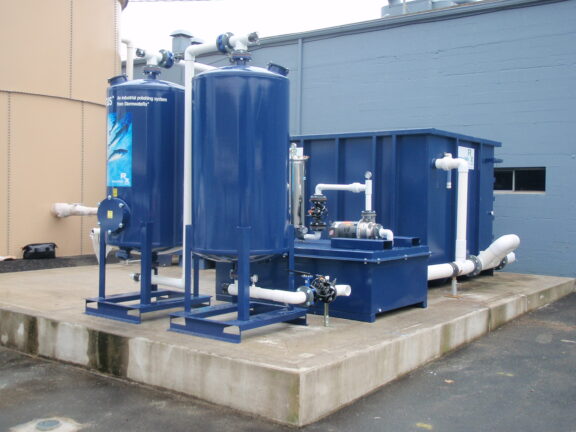

Newterra Purus polishing installation consisting of a concrete slab supprting a four pieces of equipment consisting of a shipping container, a smaller metal box, and two vertical elevated vessels
