Aquip Media Filtration System

The patented Aquip Media Filtration System offers reliable industrial stormwater treatment. Aquip Systems are available in several performance levels designed for the removal of pollutants such as suspended solids, turbidity, heavy metals (including dissolved metals), organics (e.g. volatile hydrocarbons, polychlorinated biphenyls (PCBs), polycyclic aromatic hydrocarbons (PAHs)), and nutrients (e.g. nitrogen and phosphorus). Targeted metals include copper, zinc, iron, lead, aluminum, nickel and cadmium. The Aquip systems are typically installed above ground with a single pump station in a simple, easy-to-use configuration.

Get Started

Product Overview

The Aquip Media Filtration System’s performance has been demonstrated at a wide range of industrial sites including scrap and recycling, galvanizing, metal fabrication, wood treating, automobile salvage, transportation equipment, food processing, power generation, marine and a host of others. Aquip is available in several modular configurations. Whether the structure is steel, plastic, concrete, fiberglass, earthen, or owner-supplied, Aquip owners can expect the same high performance and reliability in either retrofit, new construction or portable configurations.

Features

Removes particulates and dissolved pollutants
Uses passive filtration, no chemicals, no backwash
Open top for easy access and operation
Operates unattended, 24/7
Gravity flow-through system, no moving parts
Simple and safe effluent sampling
Available structures include steel, concrete and plastic

Benefits

Removes suspended solids, turbidity, dissolved pollutants (including heavy metals), organics and phosphorus
Targeted metals include copper, zinc, iron, lead, aluminum, nickel and others
Patented filtration—no chemicals or backwash
Passive gravity flow- through the system —no moving parts
Open top for easy access and maintenance
Operates unattended
Simple and safe effluent sampling
Technology Assessment Protocol – Ecology (TAPE), Washington State approved General Use Level Designation (GULD) for basic, enhanced and phosphorus treatment

An assembly technician works with power cutting machinery to cut length steel to create components at a Newterra plant in Brockville

We’re Here to Support You

We understand your unique challenges. Beyond a technology solution, Newterra is dedicated to the entire lifecycle of your needs. Whatever support you need, Newterra probably has a solution to solve it..

Rental and Alternative Delivery

Whether your needs are short-term bridge, emergency or supplemental or long-term system deployment, Newterra has flexible solutions that alleviate the need for major capital expenditure.

Technical and Support Services

From operations consultation and long-term service contracts embowered by our Internet of Things (IoT) platform to commissioning expertise and emergency ad-hoc needs almost anywhere in the world, our technical experts are available to serve you. Let Newterra keep your systems optimized.

Media Services

From licensed and certified removal, to exchange, to supply, Newterra provides the gamut of services to keep your media and membrane solutions at peak performance. Let the same experts who build your systems help you keep them running.

Parts and Customer Experience

Rely on Newterra for all your aftermarket needs. Our teams have the background and tools to serve you effectively. Nothing beats original equipment manufacturer (OEM) service. Anything you need, we’re here for you.

Below Grade Performance

Model	Treatment Rate (gpm)	Footprint (ft x ft)
25S	12 – 40	5 x 9
50S	25 – 75	7 x 12
80S	40 – 120	7 x 16
110S	60 – 170	8 x 18
160S	80 – 240	8 x 27
210S	100 – 320	8 x 32
300S	150 – 450	13 x 36
400S	200 – 600	13 x 47

High-performing: meets municipal separate storm sewer system (MS4) and multi-sector general permit (MSGP) performance requirements
Concrete vault configuration
Requires a minimum of 3ft 9in of drop between inlet and outlet
Removes particulates and dissolved pollutants
Patented filtration, no chemicals, no backwash
Passive gravity flow-through system, no moving parts
Operates unattended

Recommended model size depends upon the application. Please contact Newterra for more information

Above Grade Performance

Model	Treatment Rate (gpm)	Sizing Guideline (acres)*	Footprint (ft x ft)
10S/P	5 – 12	<0.25	3 x 9
25S	12.5 – 30	0.25 – 0.5	5 x 9
50S	25 – 60	0.5 – 1	7 x 12
80S	40 – 96	1 – 2	7 x 16
110S	55 – 132	2 – 3	8 x 18
160S	80 – 192	3 – 4	8 x 27
210S	105 – 252	4 – 5	8 x 32
300S	150 – 360	5 – 8	13 x 36
400S	200 – 480	6 – 10	13 x 47

Above-ground units easily retrofit to existing conveyance
Removes particulates and dissolved pollutants
Patented filtration, no chemicals, no backwash
Passive gravity flow-through system, no moving parts
Open top for easy access and maintenance
Operates unattended
Simple and safe effluent sampling
Available structures include steel, concrete, and plastic
Freeze protection and covers are available

Download the Technical Brief for Performance Charts

Two cranes stand in the background of a StormwateRx Aquip Media Filtration System consisting of a blue shipping container with PVC pipes existing the left side of the container in an outdoor industrial environment

Two StormwateRx Aquip Media Filtration System in use at an industrial site consisting of two blue shipping containers connected to water sources via PVC pipes, a technician poses for the photo on the left, water tanks are in the background

StormwateRx Aquip Media Filtration System in an outdoor industrial environment consisting of a blue shipping container fitted with pvc pipes , gauges, and a ladder with a plastic water tank nearby

Two technician look on as a crane truck moves a Newterra Aquip filtration unit in an industrial setting, two concrete StormwateRx units are stacked behind a tripod

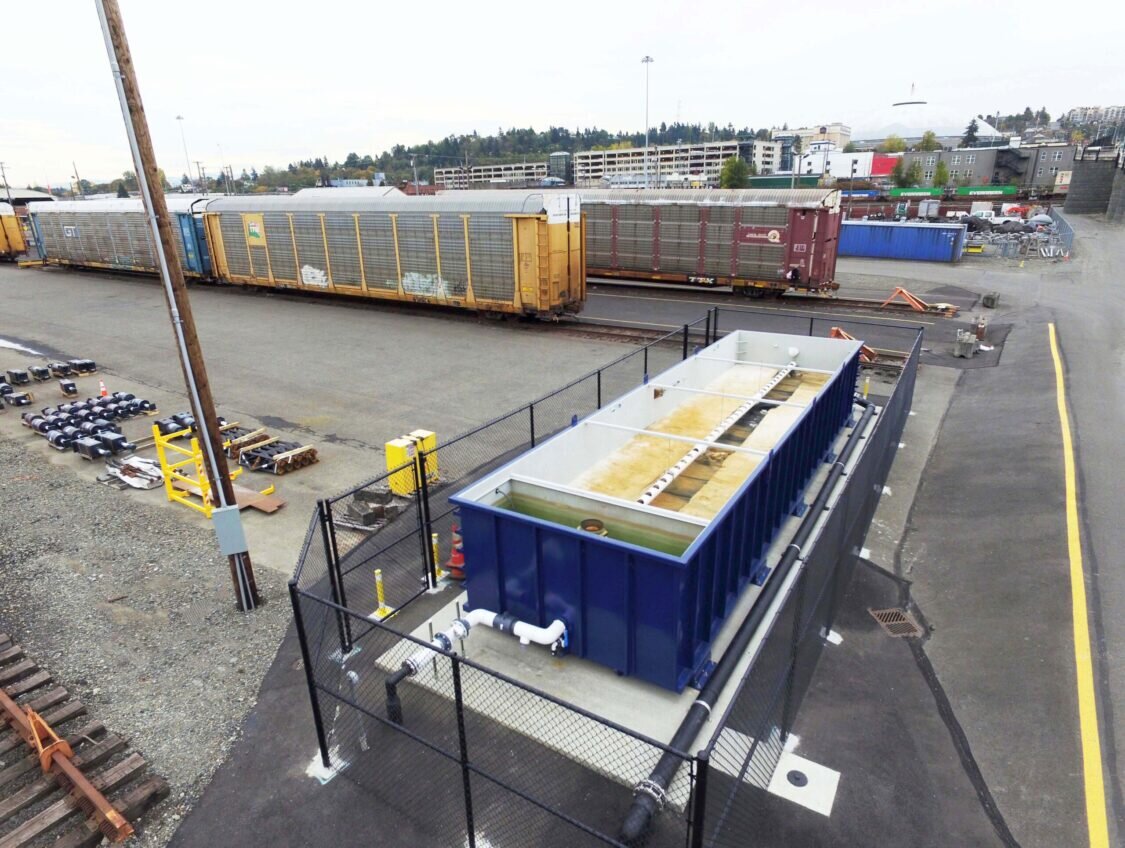

Low aerial view of a railyard with a blue Newterra modular water treatment processing unit divided into two bays connected to an underground pipe with a chain link fence around the unit, train cars sit nearby on the end of the rail line, condos and apartment buildings of a medium size city are in the background

Image and text card of Aquip versitile stormwater filter by Newterra over a modular filtration unit
