Ultrafiltration Systems

Newterra offers high-performance Ultrafiltration (UF) Systems that provide product recovery or separation treatment of process water and wastewater. UF is a low-pressure filtration process where components of a liquid are separated through pores of a semipermeable membrane based on the difference in their molecular sizes.

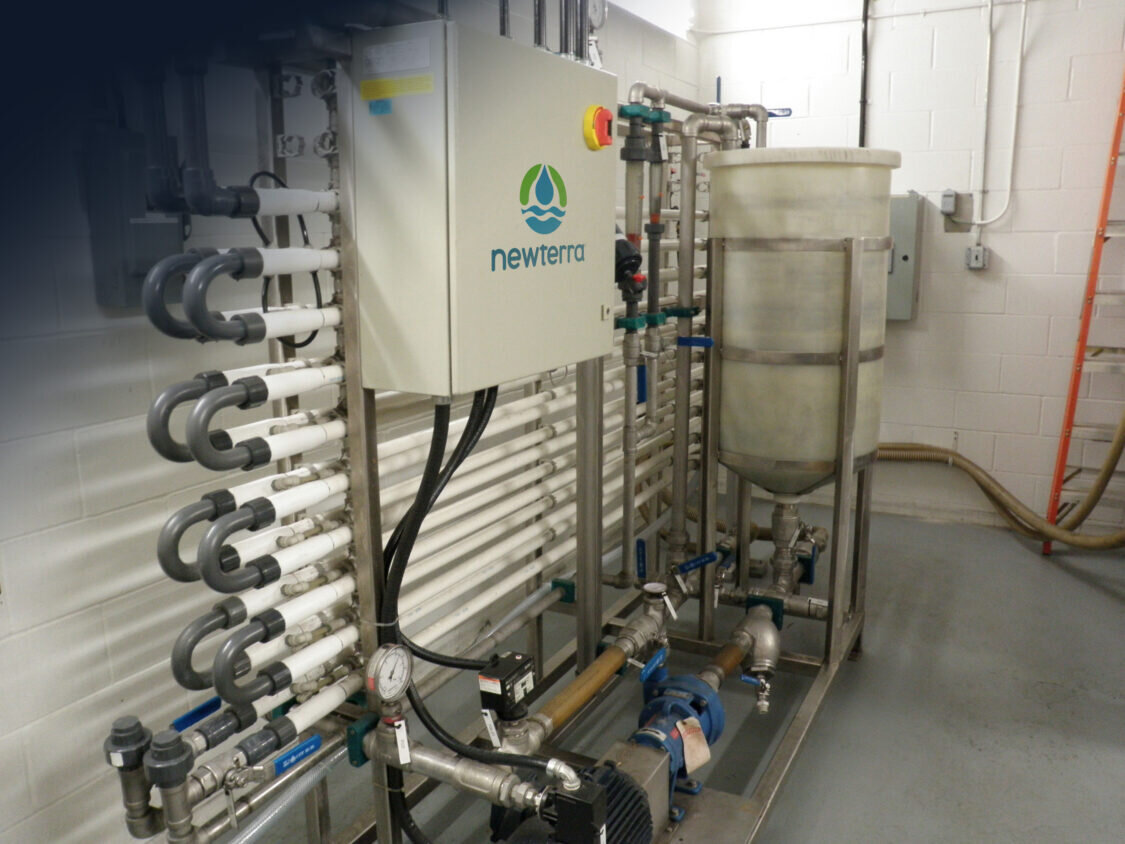

Newterra ultrafiltration system mounted on a metal wall with a series of grey tubes covered in white plastic tubing, upper left corner contains a black shadow from where the camera lens was covered during the shooting of the image.

Product Overview

The Newterra UF systems effectively separate contaminants from liquid, such as suspended solids – to below 10 ppm, oil and grease – to below 50 ppm, and metals: manganese (Mn), lead (Pb), copper (Cu), nickel (Ni), chromium (Cr), and iron (Fe) up to 99% rejection under the potential of hydrogen (pH) control, typically below 1 ppm. Ultrafiltration can be used as pretreatment for our SeaMega Seawater Desalination Systems and is used in our Potable Water Systems. TODO Links

Uses

  • Alkaline Cleaners
  • Flexographic Ink
  • Primary Metals
  • Air Compressors
  • Food Processing
  • Printing
  • Blowdown Water
  • General Metalworking
  • Pulp And Textiles Paper
  • Can Making
  • Mop Water
  • Smoke Scrubber Water
  • Chemicals
  • Parts Washers
  • Textiles
  • Cutting And Grinding Fluid
  • Power Washers
  • Waste Collection

Features

Equalization Tank (Recommended minimum 1-day holding capacity)

  • Pre-Treatment Package
    • Transfer Pump
    • Oil Water Separator
    • Particulates Micro-Filtration
  • Process Tank
  • Permeate Tank
  • Ultrafilter Processing System
  • Programmable Logic Controller (PLC) Control System
  • Automatic Sponge Ball Cleaning System

Technical Specifications

Housing MaterialPolyvinyl chloride (PVC) or stainless steel (SS) 304
Membrane Materialpolyvinylidene fluoride (PVDF) or polysulfone (PS)
Nominal Membrane pore size0.02 microns (120,000 Dalton (Da)  molecular weight cutoff (MWCO)
Membrane are tubular in shape with diameter1 inch
Standard commercial module lengths5 ft and 10 ft
Membrane Surface area10ft membrane – 2.2 ft25ft membrane – 1.1 ft2
Average flux30 – 50 GFD (gallons/ ft2/ day)
Limitations– Chlorinated solvents not allowed- Silicones not allowed
Note: Main power to control panel at 575 volts, 3 phase, 60 Hz
CharacteristicsTubular Membrane Modules(10ft length)
Maximum operating pressure at pass inlet70 psig (4.83 bar)
Maximum operating pressure at pass outlet20 psig (1.38 bar)
Minimum operating pressure at pass outlet10 psig (0.69 bar)
Maximum back pressure at permeate outlet5 psig (0.3 bar)
Pressure drop at 30 GPM/tube4.3 psi (0.29 bar)
Membrane surface area per tube2.2 ft2
Maximum operating temperature130o F (54.4o C)
Allowable pH (continuous exposure)2.0 – 10.0 @130o F (54.4o C)
Hold up volume per tube0.437 gal (0.0584 ft3)
Model number / Dimensions (L x W x H)Flow rate (Gallons per day) (Nominal to Expandable)
UF 4(1.5 x 4 x 5)132/500
UF 4-8 (4 expandable to 8)(10 x 6 x 7.5)264/1000 to 528/1,998
UF 4-12 (4 expandable to 12)(10 x 6 x 7.5)264/1000 to 792/2,998
UF 8-12 (8 expandable to 12)(10 x 6 x 7.5)528/1,998 to 792/2,998
UF 16-24 (16 expandable to 24)(12 x 4 x 7)1,056/3,997 to 1,584/5,996
UF 48-72 (48 expandable to 72)(12 x 6 x 6)3,180/12,037 to 4,740/17,943
UF 96-108 (96 expandable to 108)(12 x 10 x 7)6,330/23,962 to 7,140/27,028

Related Content

Aerial view of two Newterra air remediation modular units painted white and branded with Newterra's logo connected to a air input or output connections at the lower end and across the top of one container, the units sit next to a larger metal building ourdoors near other industrial processing equipment

Air Remediation Treatment

Newterra Air Remediation Treatment offers extensive experience, including vacuum extraction to treat contaminated vapor streams at varying flow rates and contaminant concentrations.

Innermost view of a Newterra microfloat dispersed air flotation DAF system where a central round tank is filled with water aerated to the point of being a milky white foam texture by an aerator mounted with metal brackets in the middle of the image with the tank structure supported by metal reinforcing structures, the view is underneath a blue support structure with stairs and various vertical metal pieces can be seen in the background

Aire-O2® Microfloat Dispersed Air Flotation (DAF) System

Newterra Aire-O2® Microfloat Dispersed Air Flotation (DAF) System is an effective and reliable physical/chemical pre-treatment technology at a much lower cost.

Low aerial view of a railyard with a blue Newterra modular water treatment processing unit divided into two bays connected to an underground pipe with a chain link fence around the unit, train cars sit nearby on the end of the rail line, condos and apartment buildings of a medium size city are in the background

Aquip Media Filtration System

Newterra Aquip Media Filtration System offers reliable industrial stormwater treatment to remove pollutants such as suspended solids, turbidity, heavy metals, organics, and nutrients. Targeted metals include copper, zinc, iron, lead, aluminum, nickel and cadmium.

A Newterra Clara filter is lowered into a prepared dirt site at an auto recycler with four technicians guiding the unit or looking on as a crane lowers the concrete box and divider into place

Clara Filter

Newterra Clara Filter provides a patent pending passive media filter that can serve as a standalone treatment or as a pretreatment best management practice (BMP).

Three technicians and a manager install a Clara Gravity Separator from Newterra at a new construction site for industrial use

Clara Gravity Separator

Newterra Clara Gravity Separator provides a patented oil-water separator for basic industrial stormwater treatment that can be used as a standalone treatment or as part of a treatment train.

Newterra's Clara Long Box Separator consisting of a filter like a shipping container with a V like base and ladder to view the interior of the box

Clara LongBox (LB) Separator

Newterra Clara LongBox (LB) Separators offer high sediment-loading, high flow-rate active stormwater treatment separators in a flexible, modular package.

A Newterra longbox filter sits in an industrial building consisting of a metal box with a v shaped base with a black frame and a maintenance access walkway and set of stairs

Construction Dewatering

Newterra Construction Dewatering Water Treatment Systems offer you modular, high-flow sediment and suspended solids removal.

Two Newterra branded elevated tank vessels connect to a ground remediation system in an industrial processing buiding

Groundwater Remediation System

Newterra Groundwater Remediation Systems offer cost-effective treatment systems engineered and built for your toughest water challenges.

Newterra ultrafiltration system consisting of a tank, pipes, hoses, and tubing to a control panel with switches on an elevated stand.

Industrial Microfiltration/Ultrafiltration & NanoFiltration Systems

Newterra Microfiltration, Ultrafiltration (UF) and Nanofiltration Systems for total suspended solids (TSS) and oil removal from industrial wastewater and reverse osmosis (RO) pretreatment.

A lidded blue barrel branded with Newterra logo and a black outflow plug

Liquid Phase Active Carbon Adsorber Drum Systems

Newterra CANSORB and ECONO Liquid Phase Granular Activated Carbon Adsorber Drum Systems utilize a wide variety of carbon media for environmental remediation and purification applications and are available in steel, carbon steel and polyethylene.

A Newterra Clara longbox filtration unit in an industrial setting consisting of a yellow ladder and guardrail attached to the unit with a V shaped base running the length of the box with a rectangular box over it, riveted access panels can be seen at the base of the unit

LongBox Clarifiers

Newterra LongBox High-flow Clarifiers offer you modular, high-flow sediment and suspended-solids removal on groundwater treatment and dewatering projects.

A white and blue metal frame supports a cochrane multi media filtration system consisting of five elevated blue vessels and a series of pipes in various sized containing gauges and other omponents supporting the water filtration process

Multi-Media Filtration

Newterra Multi-Media Filtration is a robust, industrial quality system to remove total suspended solids (TSS), turbidity, and silt density index (SDI): dirt, sand, and sediment.

Newterra vacuum extraction system consisting of a series of metal boxes connected by pipes and hoses with the center blue box branded with the Newterra logo and the box on the right connected to a blower motor, pipes of various sizes with gauges and electrical panels in an industrial setting, the unit rests on a concrete slab near power lines

Vacuum Extraction System

Newterra Vacuum Extraction Remediation Systems deliver vacuum extraction of water, air and product from wells.

Lidded white metal drum with a blue outlet plug branded with Newterra brand name and logo

Vapor Phase Granulated Active Carbon Drum Systems

Newterra NIXTOX and ECONO V Vapor Phase Granular Activated Carbon (GAC) Adsorber Drum Systems utilize a wide variety of carbon media and are available in steel, carbon steel and polyethylene materials.

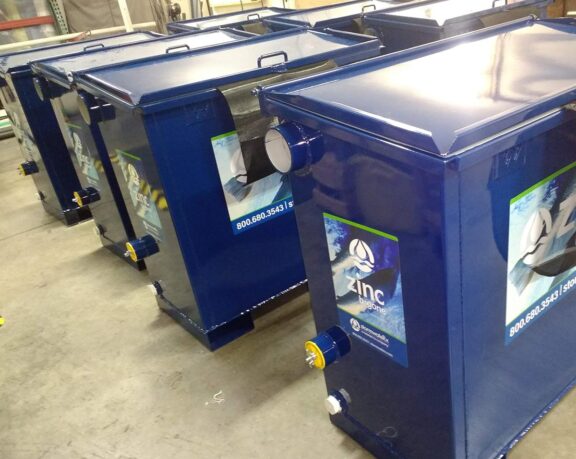

Seven blue Zinc-B-Gone filter units sit in a warehouse ready for shipment
